MSI MAG X870E TOMAHAWK WIFI

MSI
Изпрати запитване
Добави в любими
Сподели
Спецификации
  • Manufacturer
    MSI
  • Graphics
    1x HDMI™;Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*;2x Type-C DisplayPort;USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
  • CPU's supported
    Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors;Socket AM5
  • Chipset
    AMD X870E
  • Expansion Slots
    3x PCI-E x16 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);PCI_E1 slot;• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors);• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors);• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
  • Memory type
    4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;Ryzen™ 9000 Series Processors max. overclocking frequency:;• 1DPC 1R Max speed up to 8400+ MT/s;• 1DPC 2R Max speed up to 6400+ MT/s;• 2DPC 1R Max speed up to 6400+ MT/s;• 2DPC 2R Max speed up to 4800+ MT/s;Supports AMD POR Speed and JEDEC Speed;Supports Memory Overclocking and AMD EXPO™;Supports Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM, Clock Driver bypass mode only

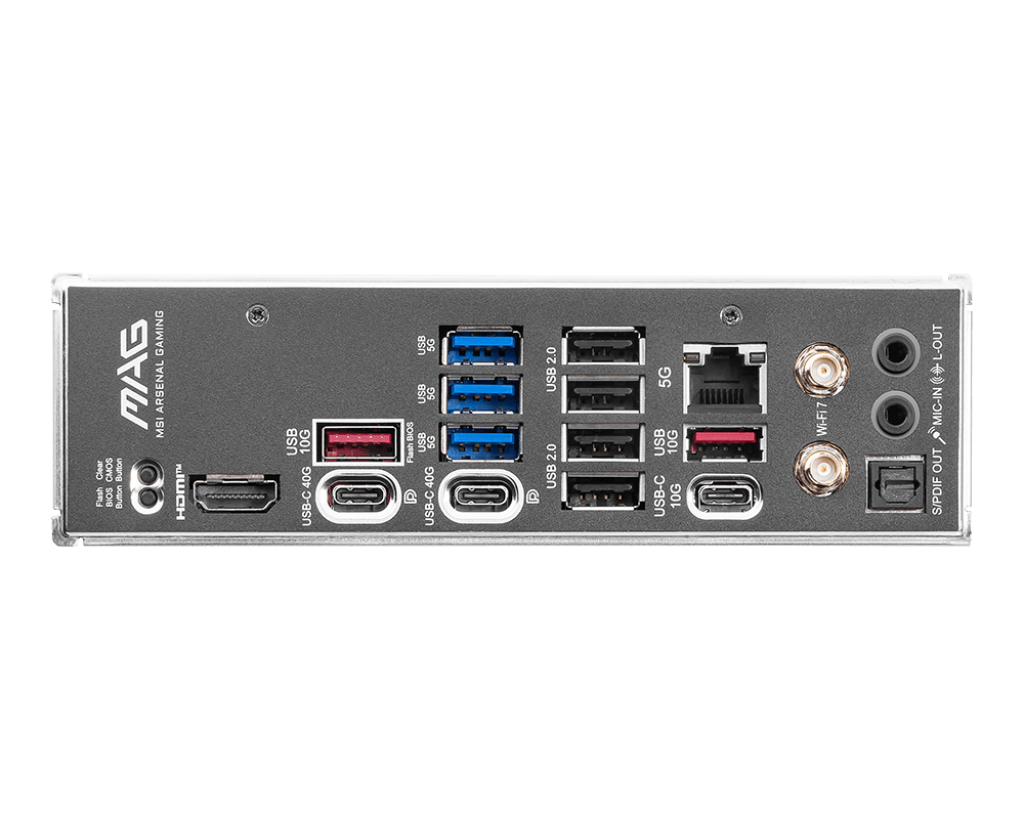

  • I/O
    Clear CMOS Button;USB 10Gbps Type-A;USB 5Gbps Type-A;USB 2.0;5G LAN;Wi-Fi / Bluetooth;Audio connectors;Flash BIOS Button;HDMI™;USB 40Gbps Type-C;USB 10Gbps Type-C;USB 10Gbps Type-A
  • Connectors
    1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);6x System Fan;1x EZ Conn-header (JAF_2);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);3x Addressable V2 RGB LED connector (JARGB_V2);1x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;4x USB 5Gbps Type A ports;1x USB 20Gbps Type C ports
  • Audio
    Realtek® ALC4080 Codec;7.1-Channel USB High Performance Audio;Supports up to 32-bit/384kHz playback on front panel;Supports S/PDIF output
  • LAN
    1x Realtek® 8126 5G LAN
  • Form Factor
    ATX;243.84mmx304.8mm
  • OS
    Support for Windows® 11 64-bit
  • Warranty
    36 Months
