ASRock

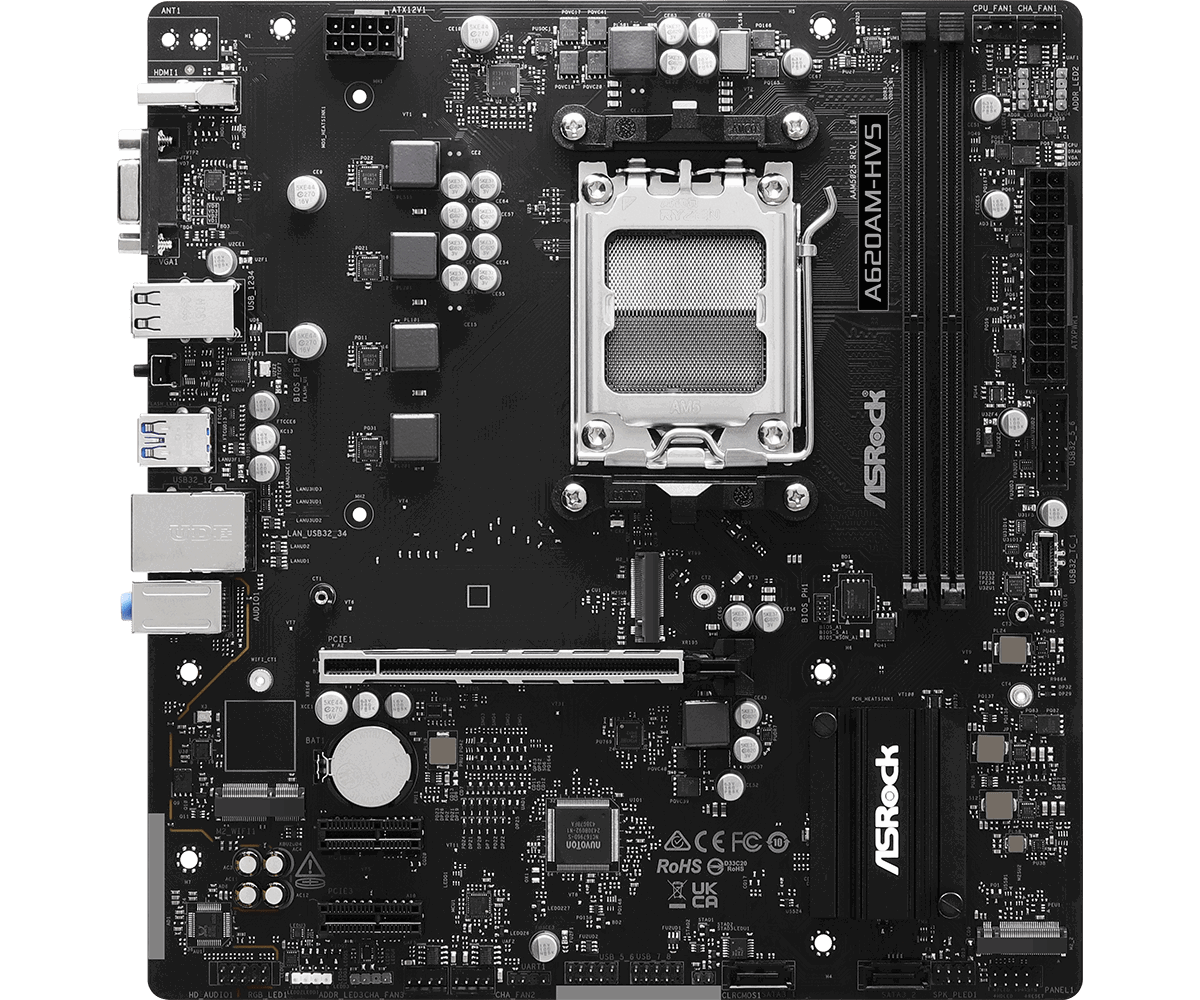

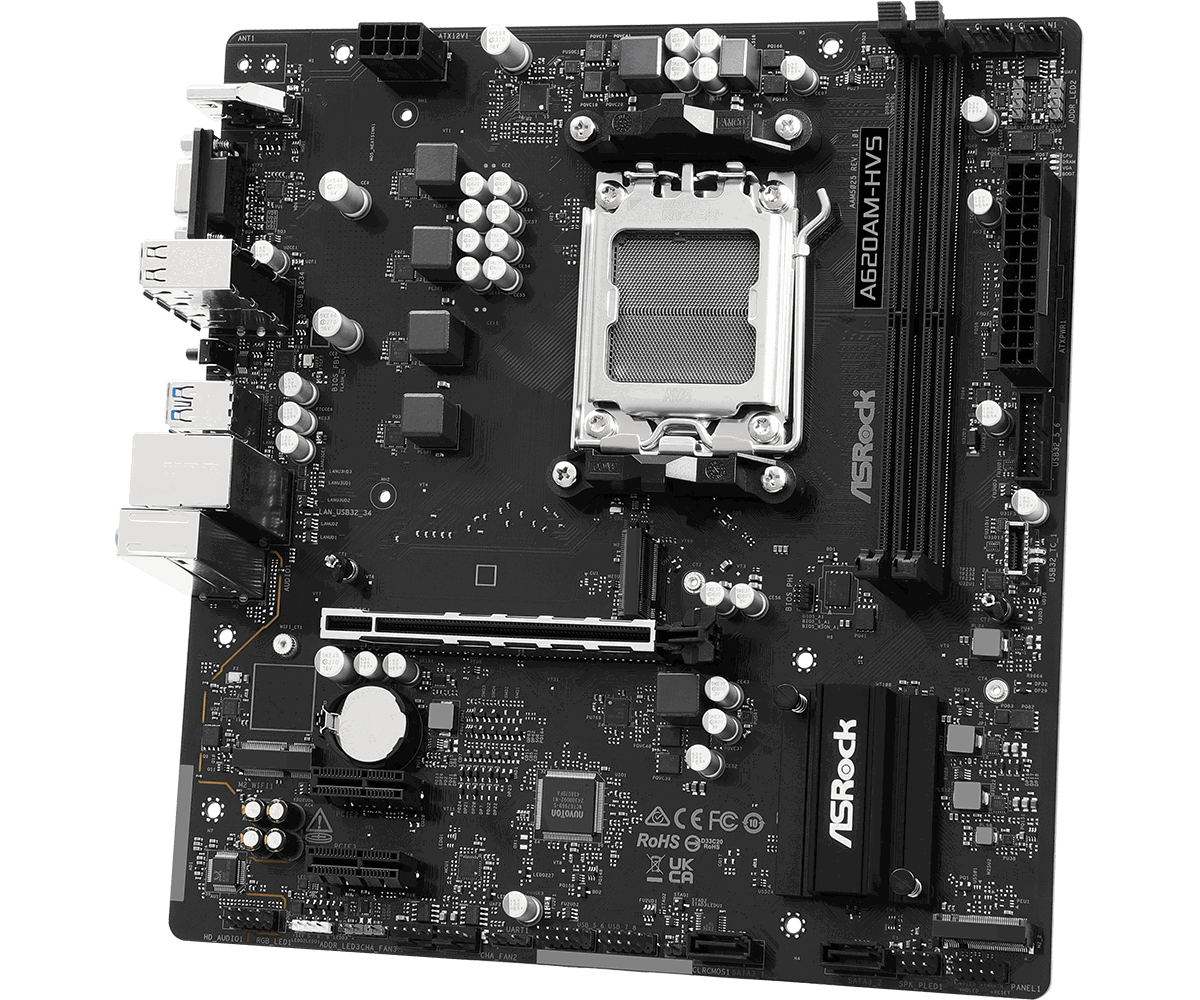

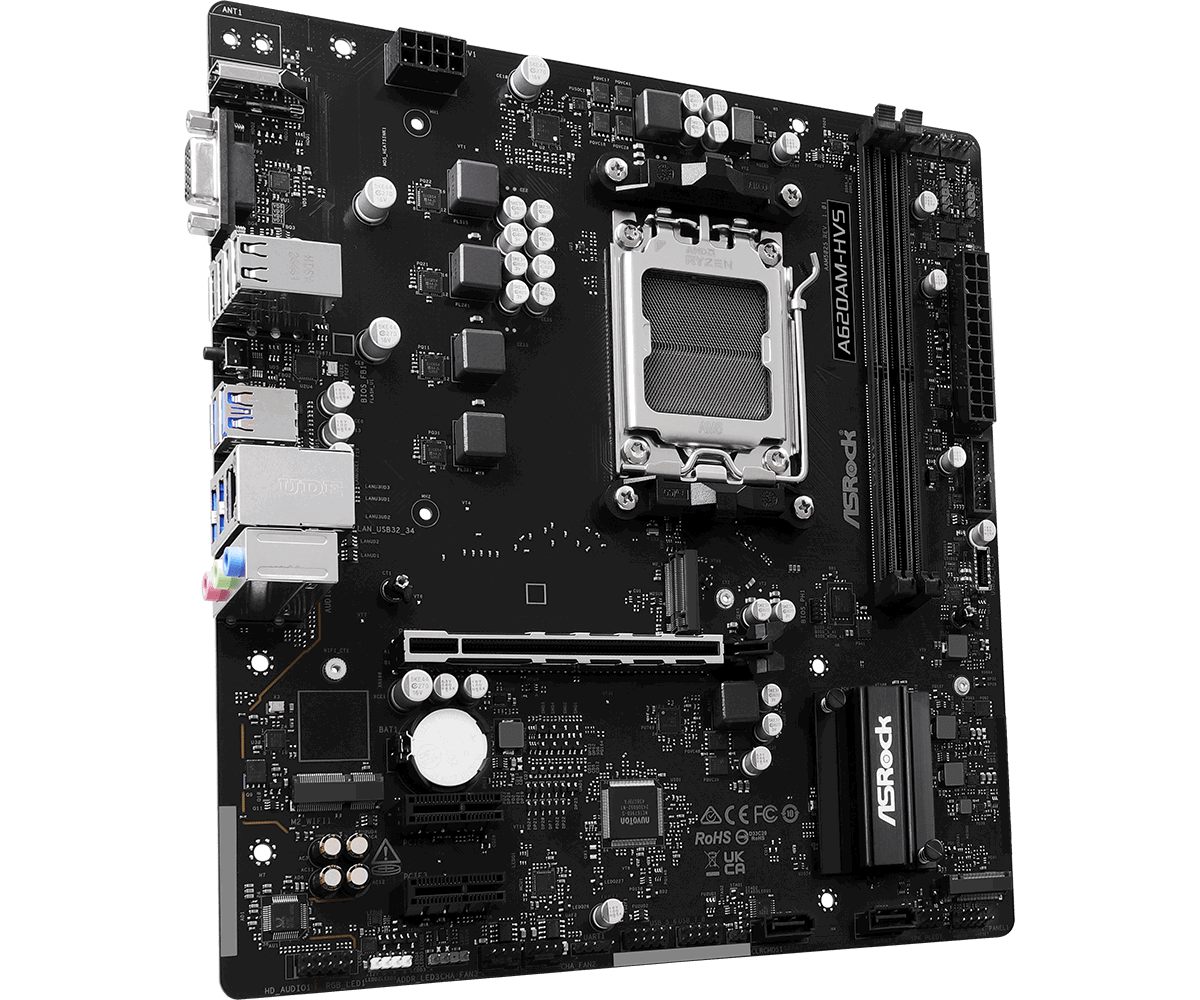

ASROCK A620M-HVS

ASRock
Изпрати запитване
Добави в любими
Сподели
Спецификации
  • Manufacturer
    ASRock
  • Model
    A620M-HVS
  • Graphics
    Integrated AMD RDNA™ graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
  • CPU's supported
    Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • Chipset
    AMD A620A
  • Expansion Slots
    CPU:; - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:; - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - 15μ Gold Contact in VGA PCIe Slot (PCIE1); *PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.; Supports NVMe SSD as boot disks
  • Memory type
    Dual Channel DDR5 Memory Technology; 2 x DDR5 DIMM Slots; Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC); Max. capacity of system memory: 128GB; Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  • Connectors
    1 x Power LED and Speaker Header; 1 x RGB LED Header*; 3 x Addressable LED Headers**; 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***; 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; 1 x 24 pin ATX Power Connector; 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen1 Header; *Supports in total up to 12V/3A, 36W LED Strip; **Support in total up to 5V/3A, 15W LED Strip; ***CPU_FAN1 supports the fan power up to 1A (12W).; CHA_FAN1~3/WP support the fan power up to 3A (36W).; CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Audio
    7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • LAN
    Gigabit LAN 10/100/1000 Mb/s; Realtek RTL8111H
  • BIOS
    256Mb AMI UEFI Legal BIOS with GUI support
  • Form Factor
    Micro ATX Form Factor: 24.4 cm x 22.9 cm; 2oz Copper PCB
  • OS
    Microsoft Windows® 10 64-bit / 11 64-bit
