Спецификации

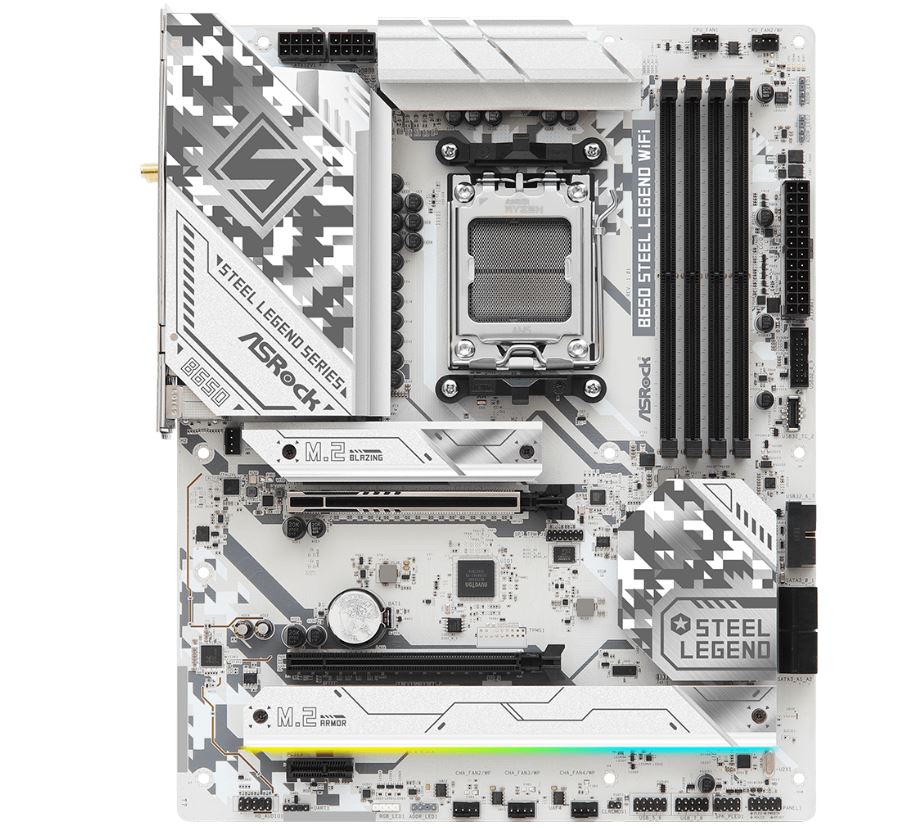

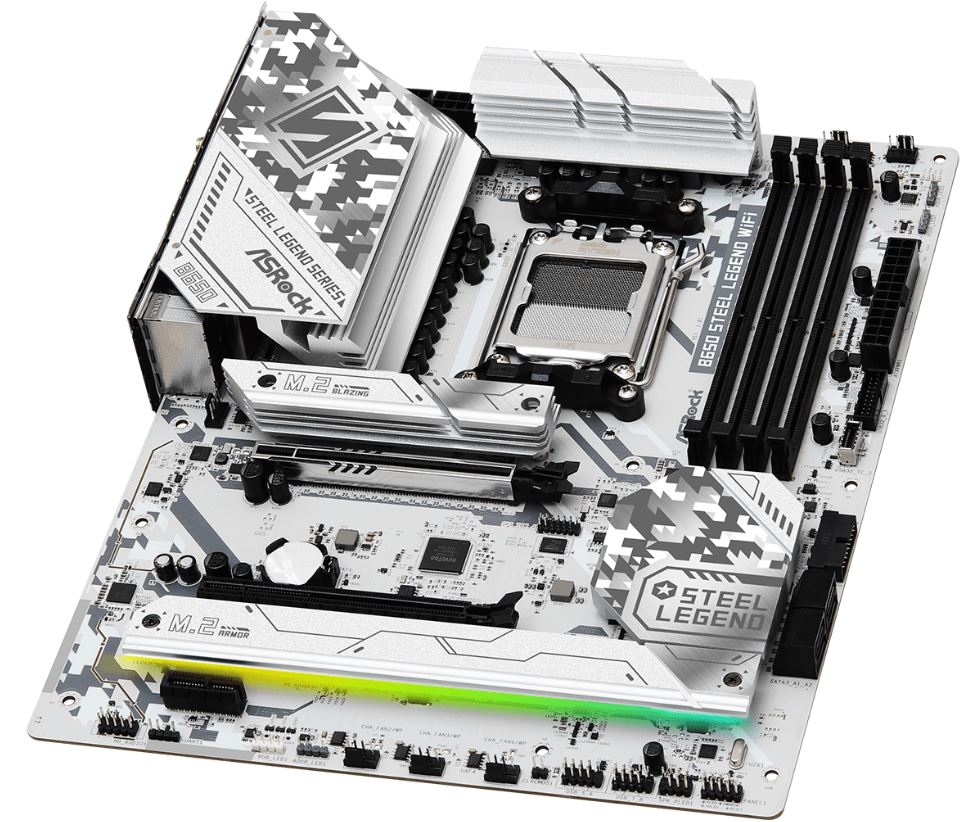

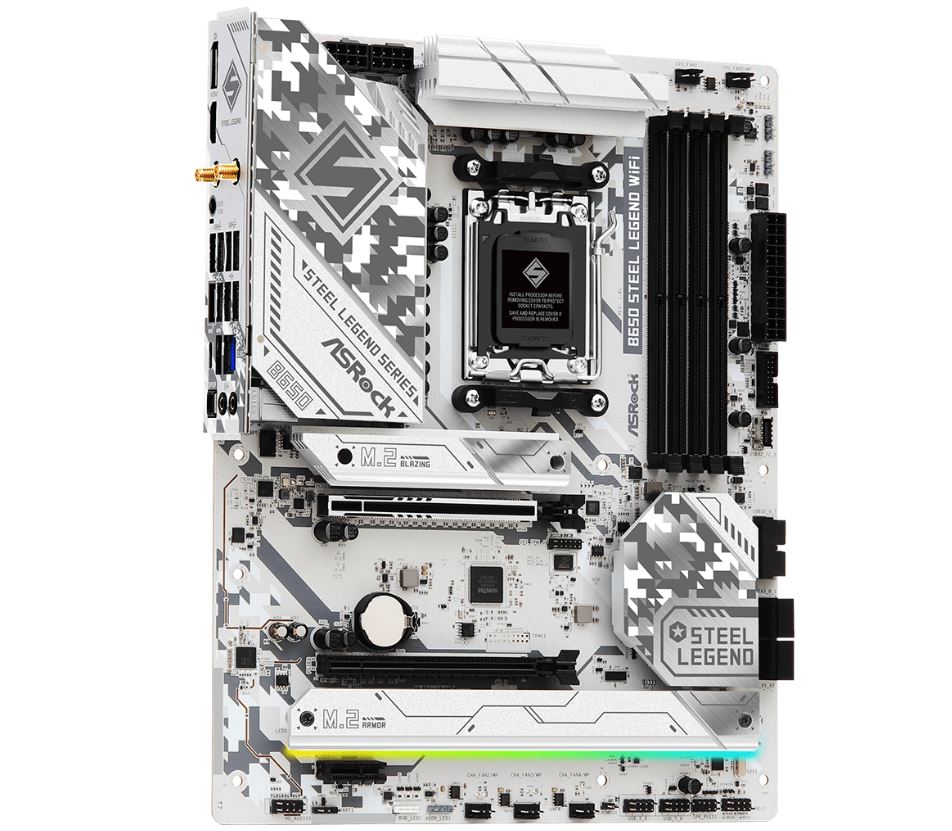

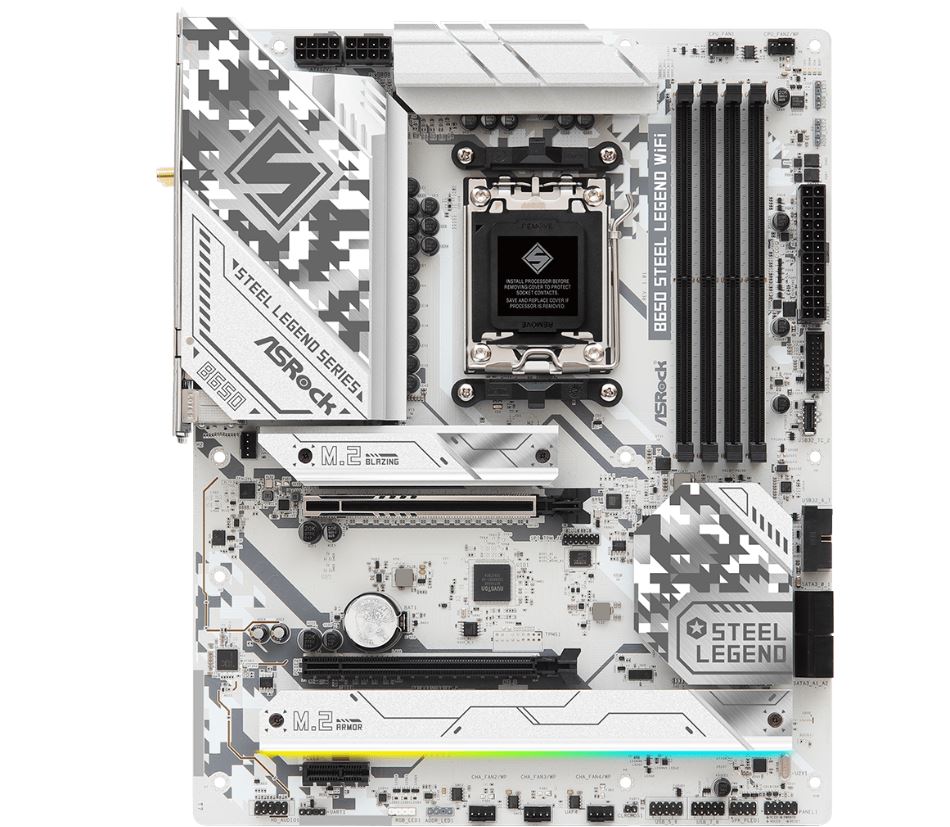

- ModelB650 STEEL LEGEND WIFI

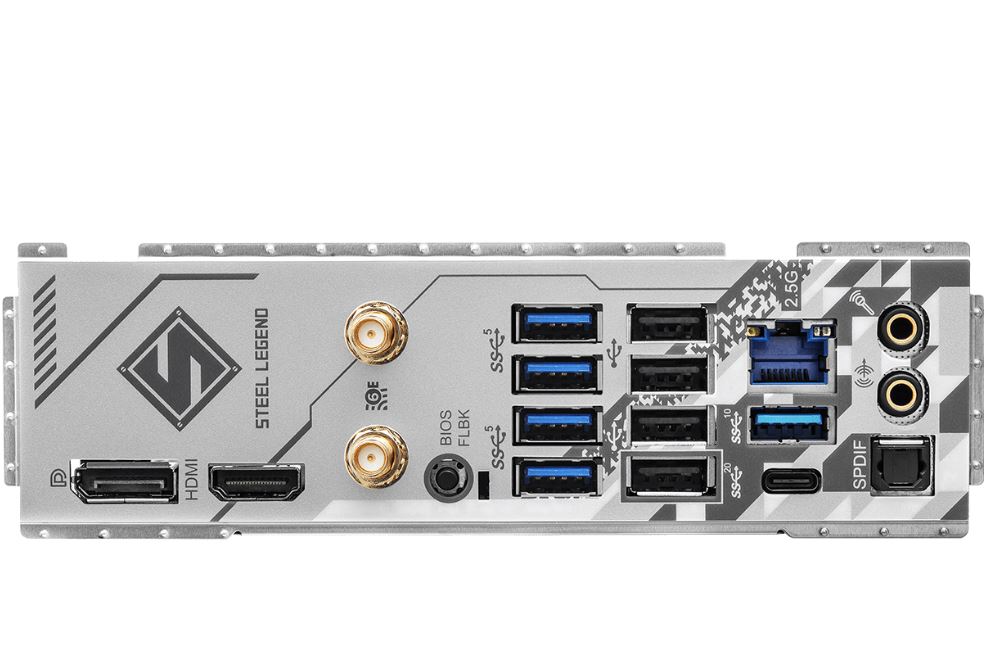

- GraphicsIntegrated AMD RDNA™ graphics (Actual support may vary by CPU); 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz;
- ChipsetAMD B650
- Memory typeDual Channel DDR5 Memory Technology; 4 x DDR5 DIMM Slots; Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC); Max. capacity of system memory: 256GB; Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules;

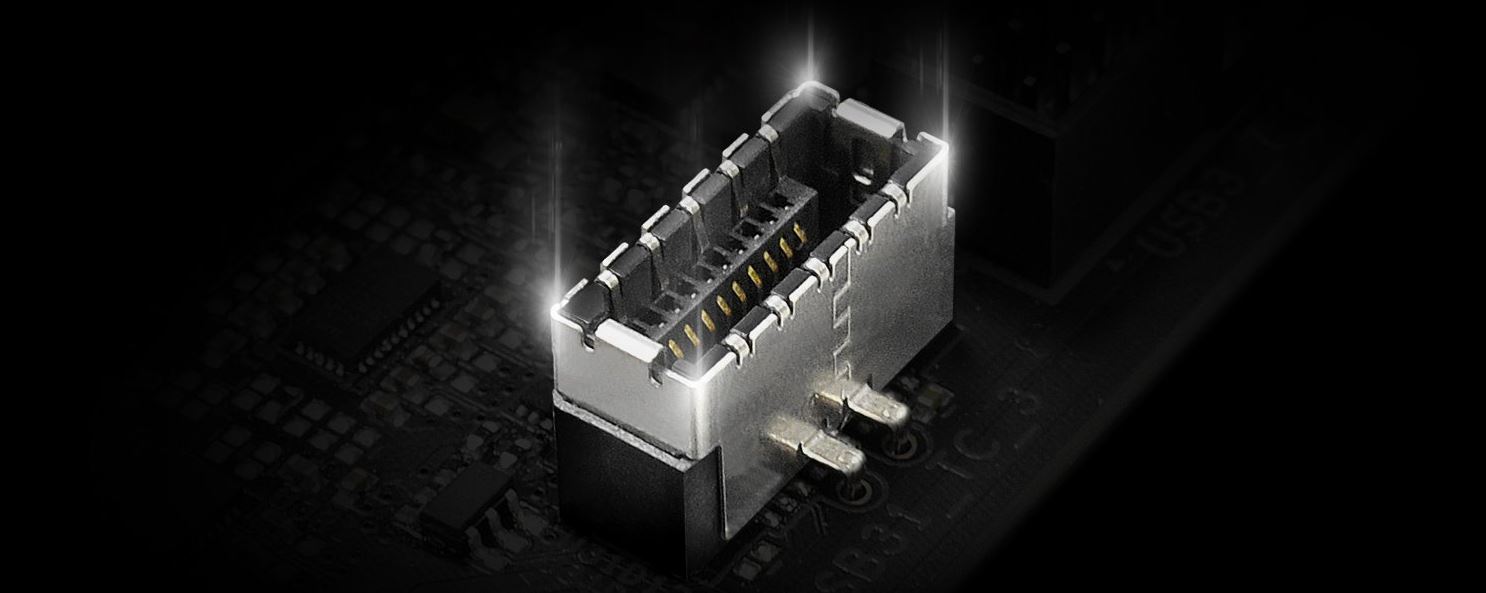

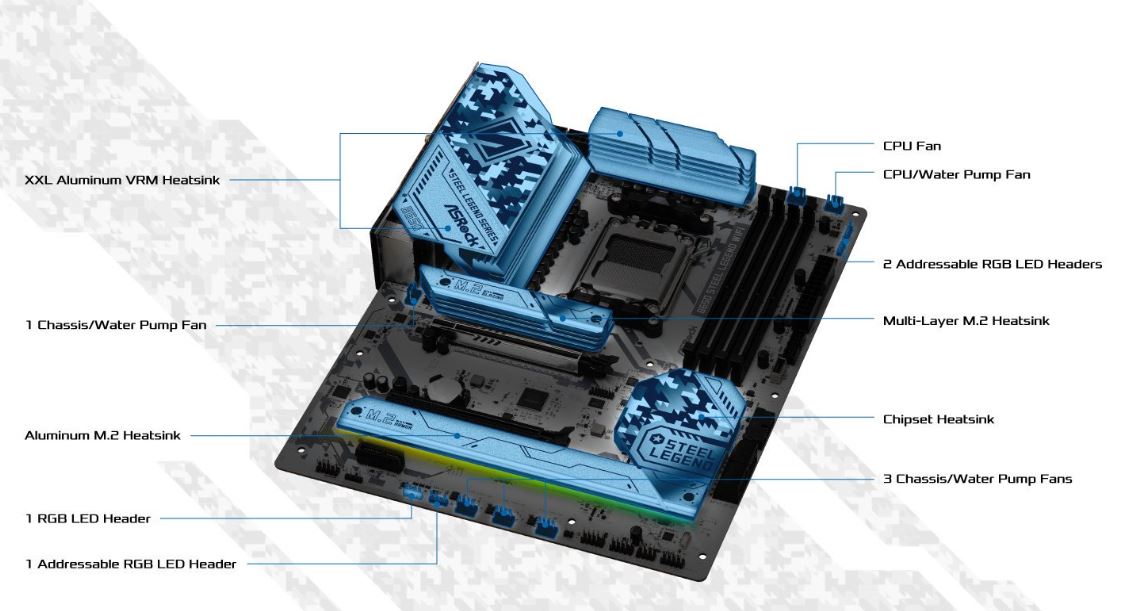

- Connectors1 x SPI TPM Header; 1 x Power LED and Speaker Header; 1 x RGB LED Header*; 3 x Addressable LED Headers**; 1 x CPU Fan Connector (4-pin)***; 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen1 Header;
- Audio7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec); Individual PCB Layers for R/L Audio Channel; Impedance Sensing on Rear Out port; Nahimic Audio;
- LAN2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Modes; User Customized Priority Control; 802.11axe Wi-Fi 6E Module; Supports IEEE 802.11a/b/g/n/ac/ax/axe; Supports Dual-Band 2x2 with extended 6GHz band* support; 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; Supports Bluetooth 5.2 + High speed class II; Supports MU-MIMO;
- BIOS256Mb AMI UEFI Legal BIOS with GUI support
- Form FactorATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 8 Layer PCB;
- OSMicrosoft Windows® 10 64-bit / 11 64-bit
- Warranty36 Months
