Спецификации
- ManufacturerASUS

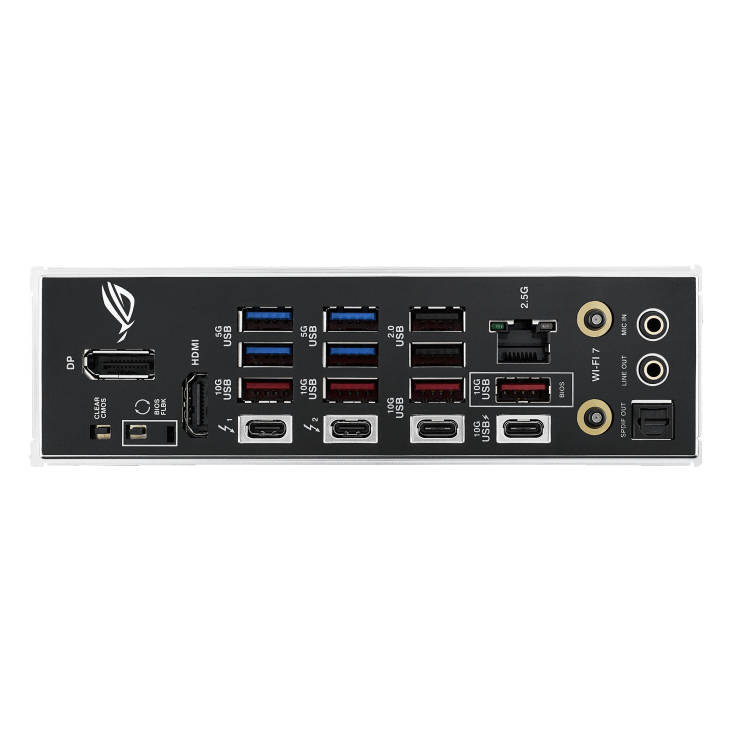

- Graphics1 x DisplayPort;1 x HDMI® port;2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs
- CPU's supportedIntel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2);Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- ChipsetIntel® Z890 Chipset
- Expansion SlotsIntel® Core™ Ultra Processors(Series 2);1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes);Intel® Z890 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode)
- Memory type4 x DIMM slots, max. 256GB, DDR5;Support up to 9066+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture ;Supports Intel® Extreme Memory Profile (XMP) memory module;Supports DIMM FlexDIMM Fit;ASUS Enhanced Memory Profile III (AEMP III)
- ConnectorsFan and Cooling related ;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;5 x 4-pin Chassis Fan headers;Power related ;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage related ;5 x M.2 slots (Key M) ;4 x SATA 6Gb/s ports;USB ;1 x USB 20Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support additional 4 USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen2 headers;1 x Chassis Intrusion header;1 x CPU Over voltage jumper;1 x Front Panel Audio header (F_AUDIO);1 x Start button;1 x 10-1 pin Front System Panel header;1 x Thermal Sensor header;1 x Thunderbolt™ (USB4®) header
- AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel;Audio Features;- SupremeFX Shielding Technology;- Savitech SV3H712 AMP ;- Gold-plated audio jacks- Rear optical S/PDIF out port ;- Premium audio capacitors;- Audio cover
- LAN1 x Intel® 2.5Gb Ethernet;ASUS LANGuard
- BIOS256 Mb Flash ROM, UEFI AMI BIOS
- Form FactorATX Form Factor;30.5 cm x 24.4 cm
- OSWindows® 11 (22H2 & later)
- Warranty36 Months
