Спецификации

Manufacturer
Asus
Model
TUF GAMING A620M-PLUS

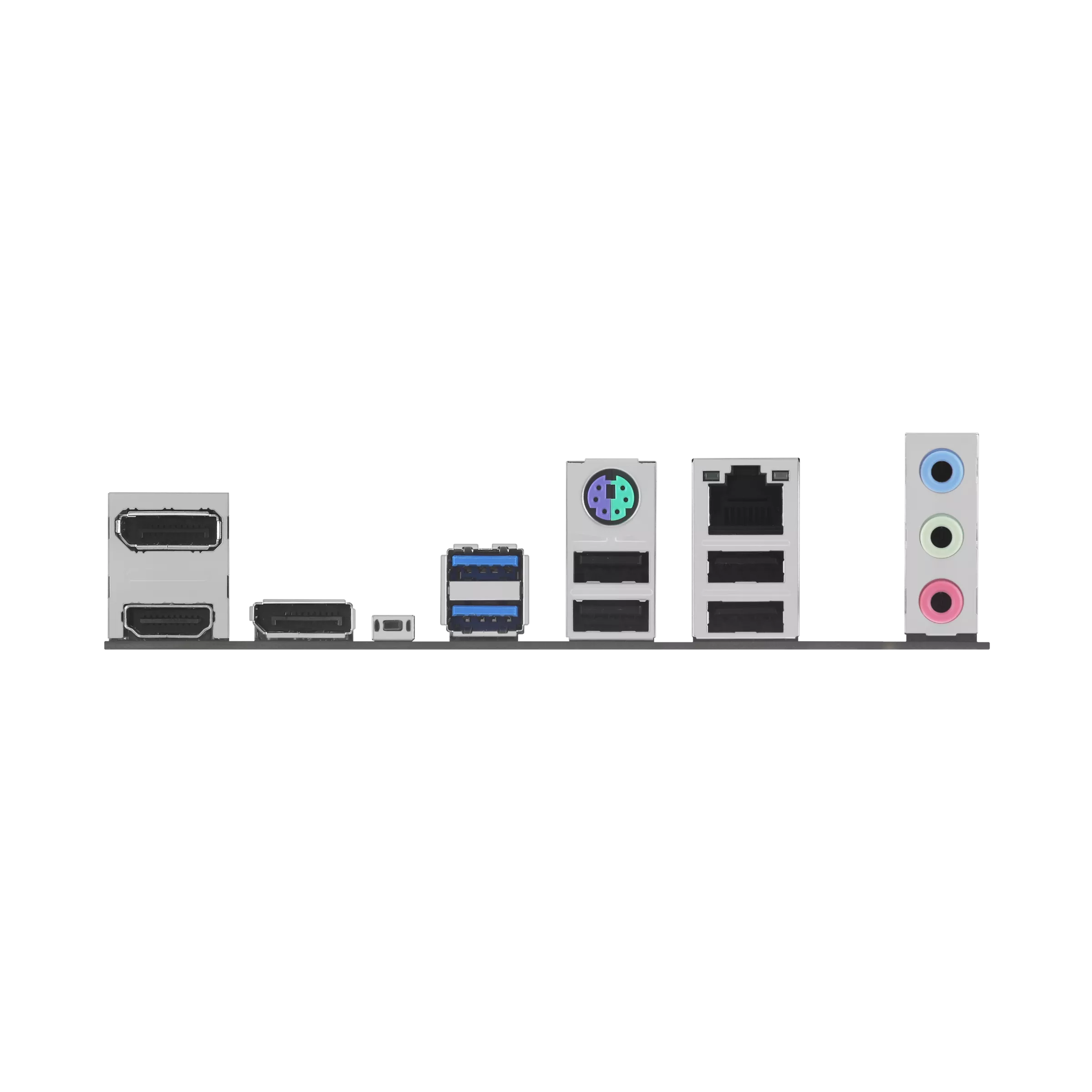

Graphics
2 x DisplayPort**; 1 x HDMI™ port***; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.
CPU's supported
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors; Supports up to AMD 170W CPU
Chipset
AMD A620A Chipset
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD A620A Chipset; 1 x PCIe 3.0 x1 slot
Memory type
4 x DIMM slots, max. 192GB, DDR5 ECC and Non-ECC Un-buffered DIMM; Supports up to 7600+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP)
Connectors
Fan and Cooling Related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x 10-1 pin Front Panel System header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN
1 x Realtek 2.5Gb Ethernet; TUF LANGuard
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
micro-ATX Form Factor
OS
Windows 11, Windows 10 64-bit
