Спецификации
- Graphics1 x DisplayPort*; 1 x HDMI® port**
- ChipsetAMD B650
- Expansion SlotsAMD Ryzen™ 7000 Series Desktop Processors*; 1 x PCIe 4.0/3.0 x16 slot(s); AMD B650 Chipset; 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode); 2 x PCIe 4.0/3.0 x1 slots
- Memory type4 x DIMM, Max. 128GB, DDR5; 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO™); OptiMem II

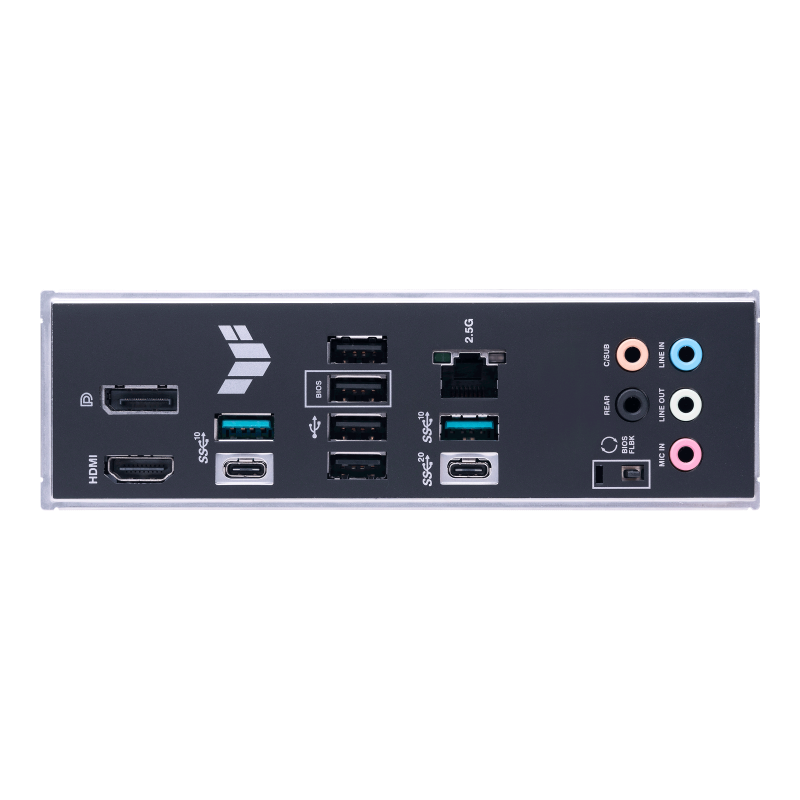

- Connectors1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 1 x 4-pin AIO Pump header(s); 4 x 4-pin Chassis Fan header(s); 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® ); 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports; 3 x Addressable Gen 2 header(s); 1 x Aura RGB header(s); 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ (USB4®) header
- AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Power pre-regulator reduces power input noise to ensure consistent performance; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio cover; - Unique de-pop circuit
- LAN1 x Realtek 2.5Gb Ethernet; TUF LANGuard
- BIOS256 Mb Flash ROM, UEFI AMI BIOS
- Form FactorATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- OSWindows® 11; Windows® 10 64-bit
- Warranty36 Months
