Изчерпана наличност

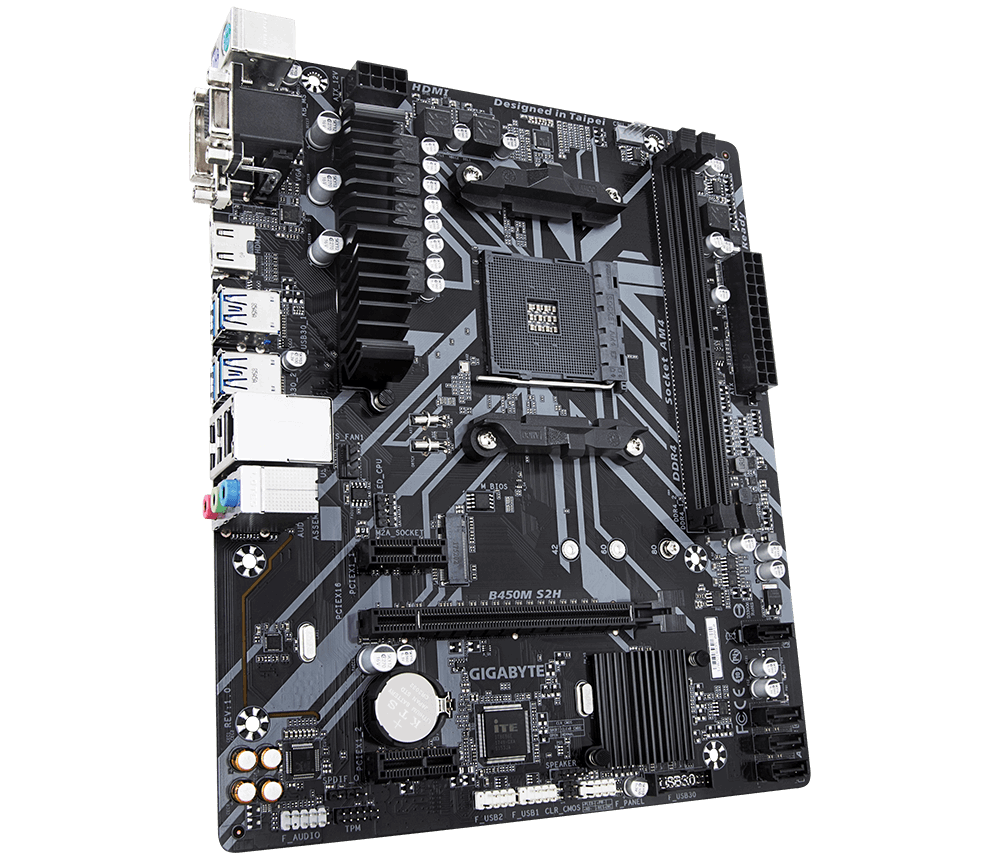

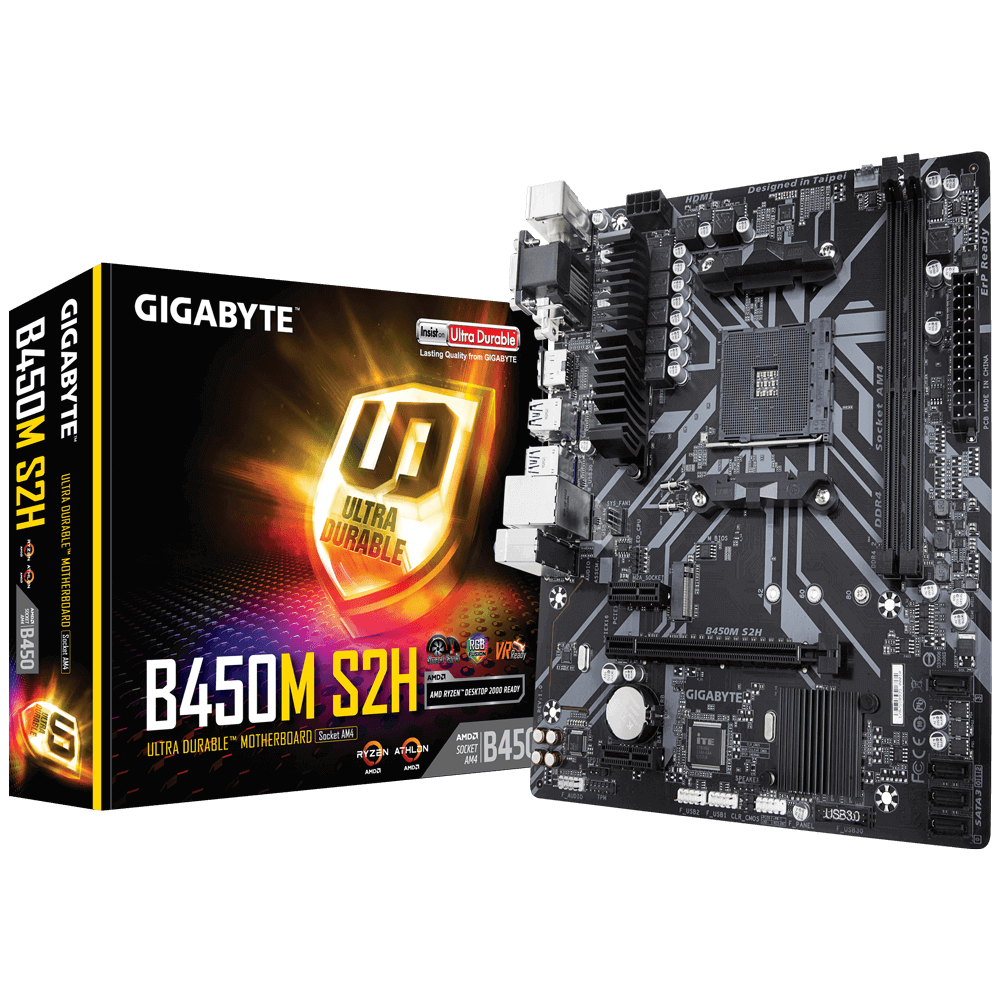

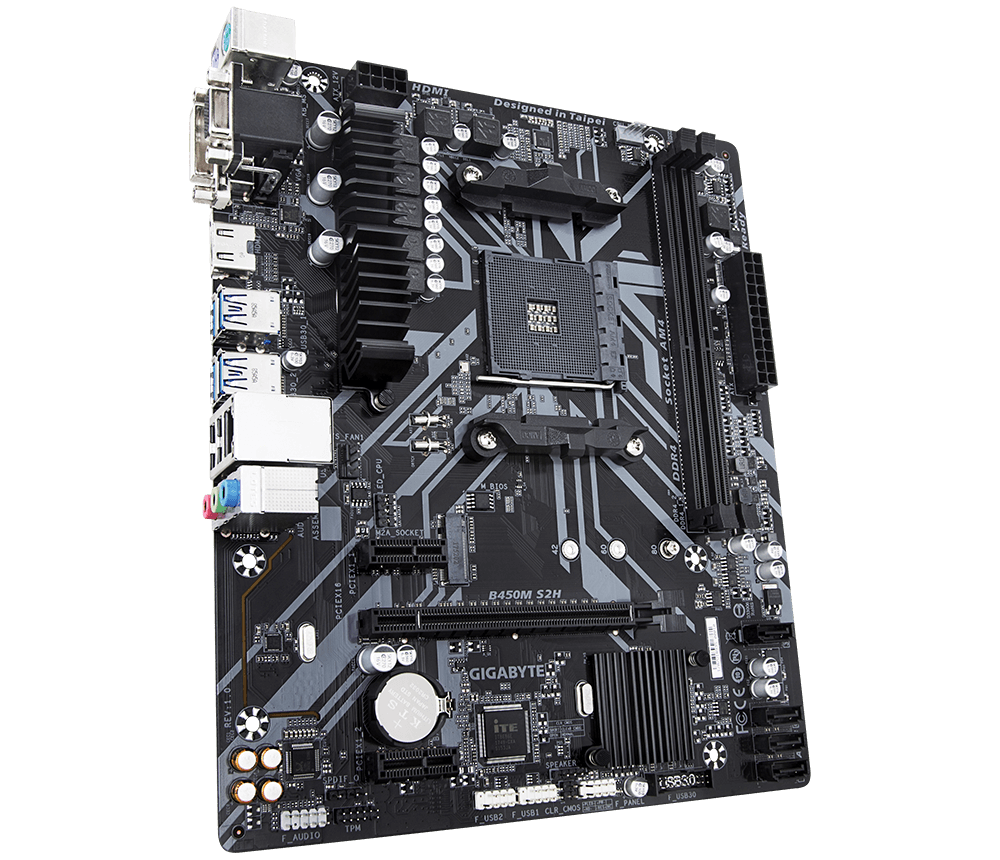

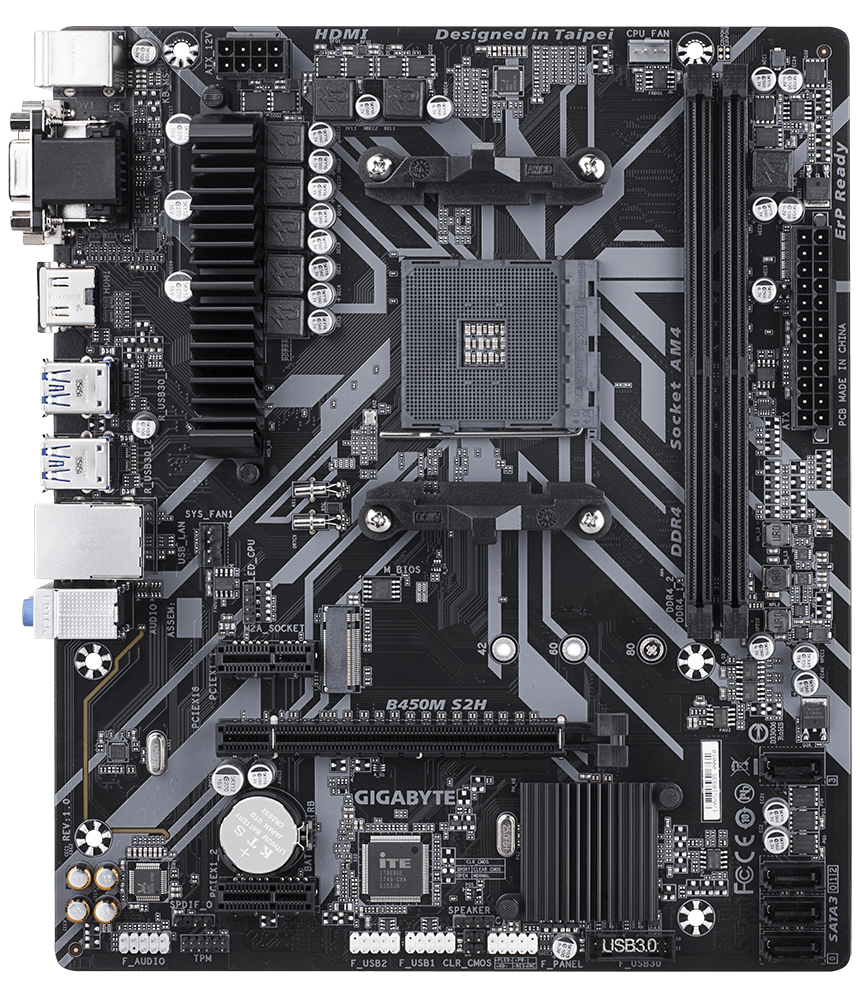

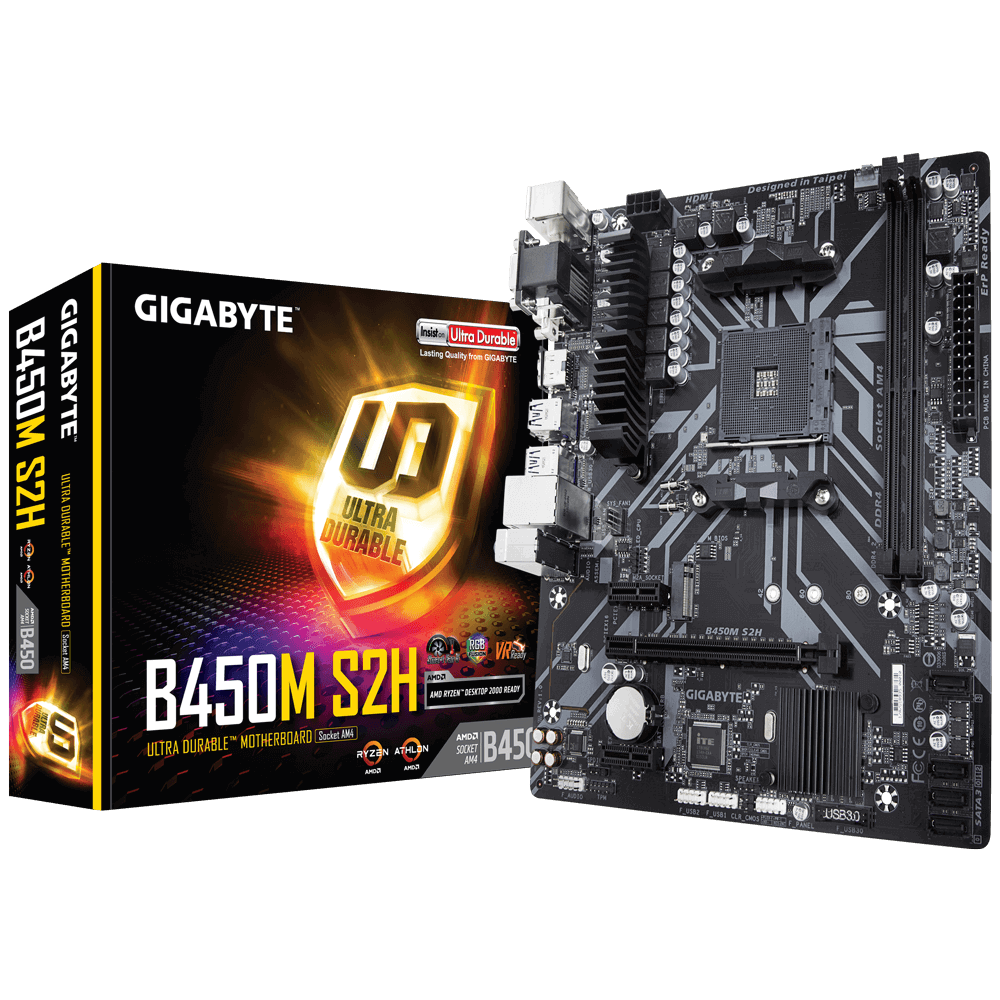

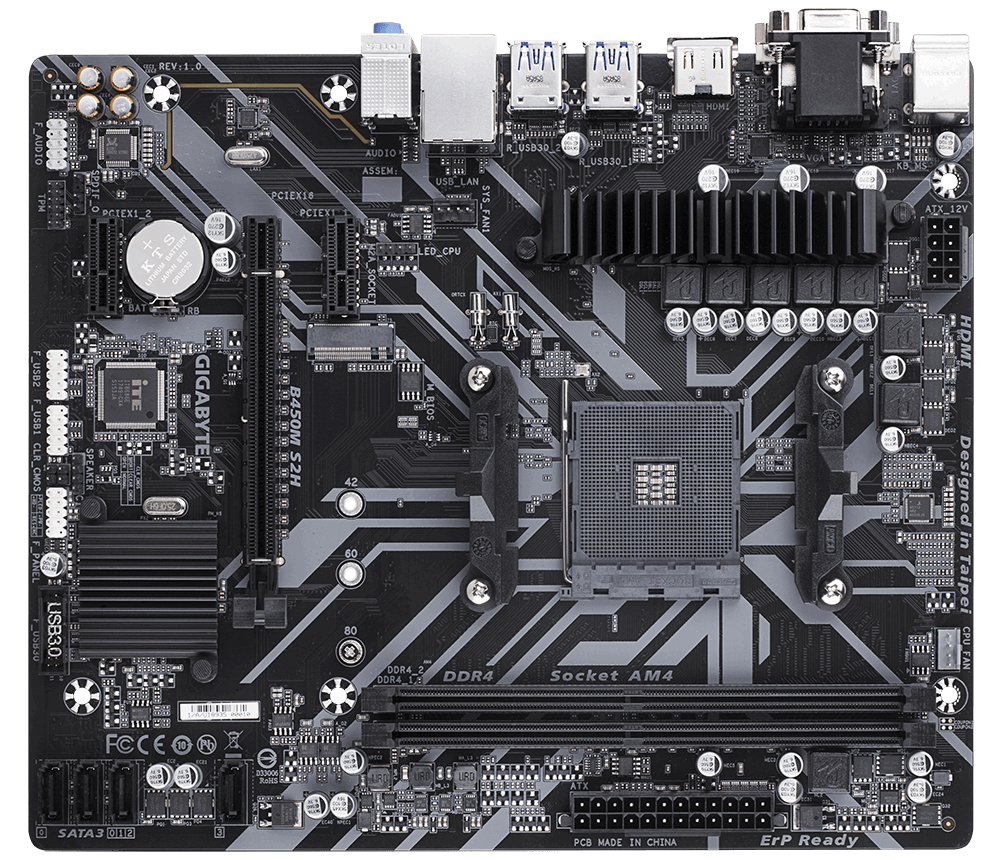

Gigabyte B450M S2H AM4

Gigabyte
Изпрати запитване
Добави в любими
Сподели
Спецификации
  • Socket
    AM4
  • Graphics
    Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz; * The DVI-D port does not support D-Sub connection by adapter.; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note); * Support for HDMI 2.0 version and HDCP 2.2.(Note); Maximum shared memory of 2 GB
  • CPU's supported
    AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
  • Chipset
    AMD B450
  • Expansion Slots
    1 x PCI Express x16 slot, running at x16; (The PCIEX16 slot conforms to PCI Express 3.0 standard.); 2 x PCI Express x1 slots; (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
  • Memory type
    2 x DDR4 DIMM sockets supporting up to 32 GB of system memory; Dual channel memory architecture; Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules

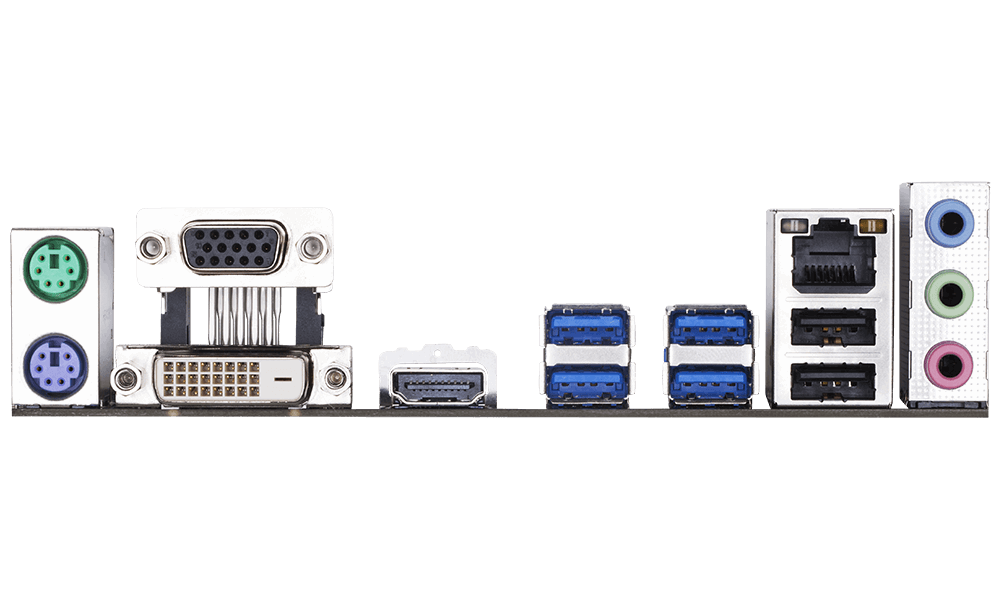

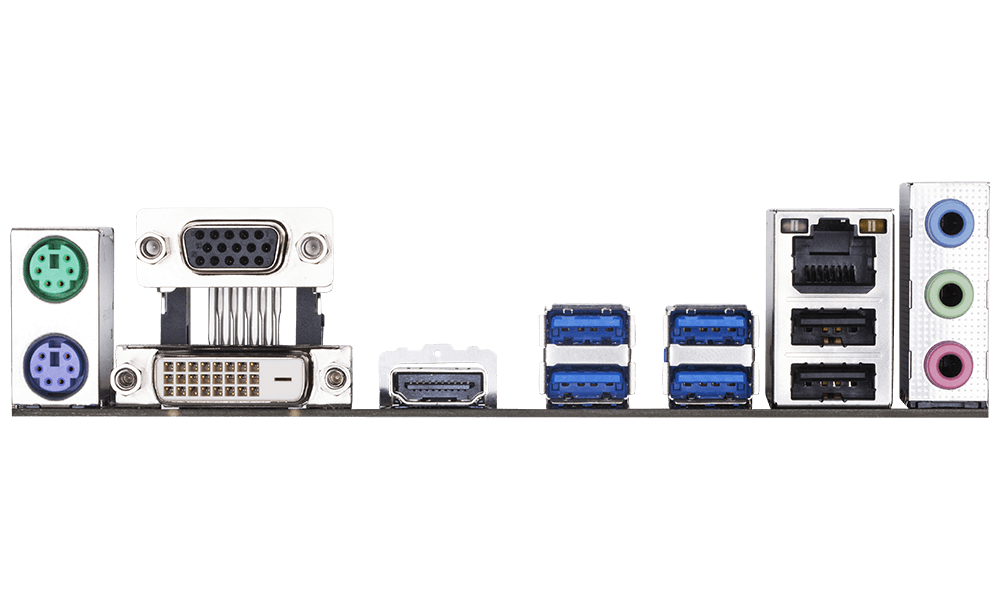

  • I/O
    1 x PS/2 keyboard port; 1 x PS/2 mouse port; 1 x D-Sub port; 1 x DVI-D port; 1 x HDMI port; 4 x USB 3.1 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
  • Connectors
    1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x CPU cooler LED strip/RGB LED strip header; 1 x USB 3.1 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x speaker header; 1 x Clear CMOS jumper; 1 x chassis intrusion header
  • Audio
    Realtek® ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel; * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.; Support for S/PDIF Out
  • LAN
    Realtek® GbE LAN chip (10/100/1000 Mbit)
  • BIOS
    1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Form Factor
    Micro ATX Form Factor; 24.4cm x 20.5cm
  • OS
    Support for Windows 10 64-bit; Support for Windows 7 64-bit
  • Warranty
    36 Months
