Спецификации

Manufacturer
GIGABYTE
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz;* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support for native HDMI 2.1 TMDS compatible ports.
CPU's supported
AMD Socket AM4, support for:;AMD Ryzen™ 5000 G-Series Processors/;AMD Ryzen™ 5000 Series Processors/;AMD Ryzen™ 4000 G-Series Processors/;AMD Ryzen™ 3000 G-Series Processors/;AMD Ryzen™ 3000 Series Processors;(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD B550
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode;- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4;- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Memory type
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory;Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules
Connectors

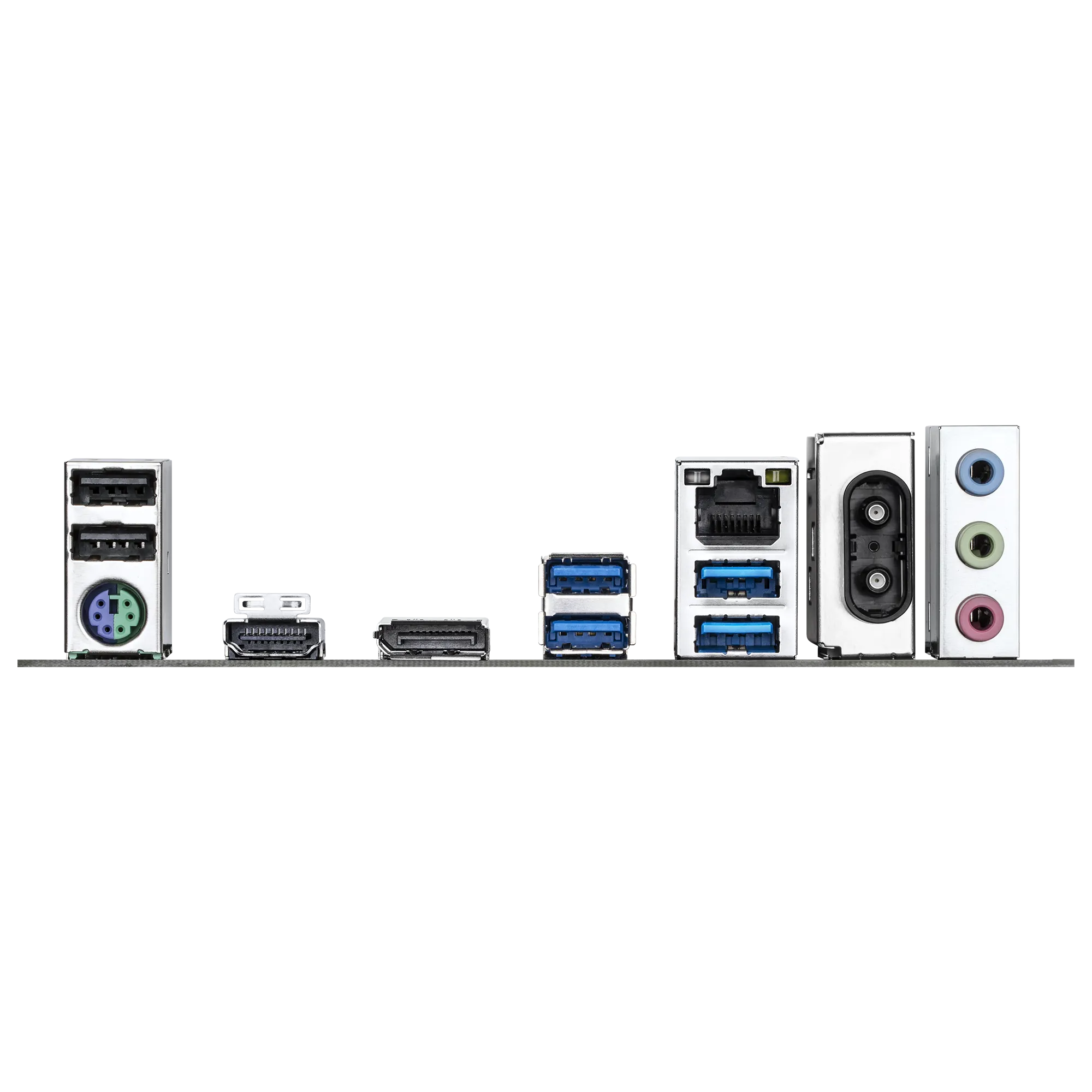

1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x addressable LED strip headers;2 x RGB LED strip headers;1 x CPU cooler LED strip/RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;1 x USB 2.0/1.1 header;1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only);1 x serial port header;1 x Clear CMOS jumper;1 x Q-Flash Plus button;Back Panel Connectors;2 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;1 x HDMI port (Note);1 x DisplayPort (Note);4 x USB 3.2 Gen 1 ports;1 x RJ-45 port;2 x antenna connectors;3 x audio jacks
Audio
Realtek® ALC1220 CODEC;* The back panel line out jack supports DSD audio.;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
BIOS
1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
OS
Support for Windows 11 64-bit;Support for Windows 10 64-bit
Warranty
36 Months
