Спецификации
- ManufacturerGIGABYTE
- GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for native HDMI 2.1 TMDS compatible ports.;- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version and HDCP 2.3
- CPU's supportedLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,Pentium® Gold and Celeron® Processors;L3 cache varies with CPU
- ChipsetIntel® B760 Express Chipset
- Expansion SlotsCPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- Memory typeSupport for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules

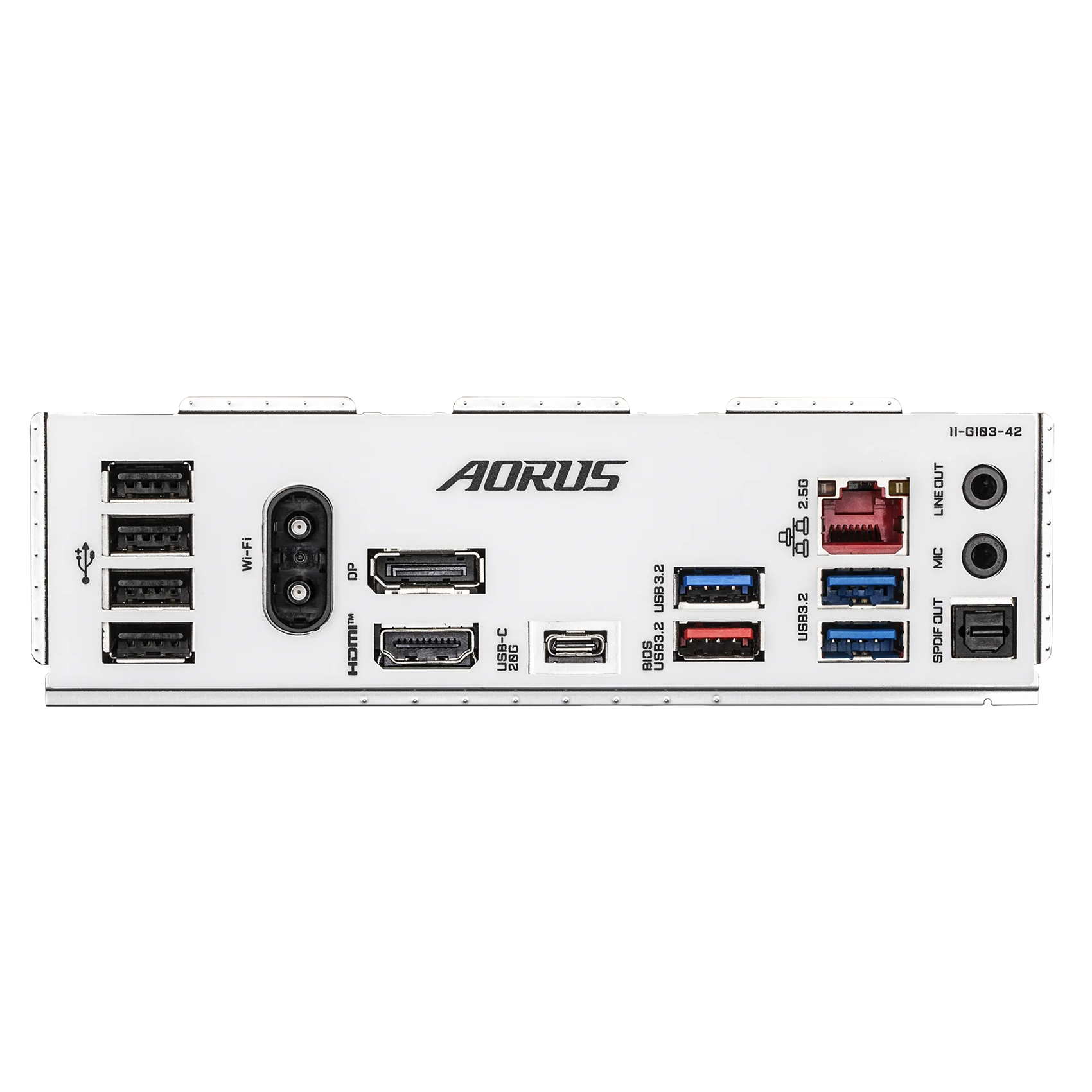

- Connectors1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x 4-pin ATX 12V power connector;1 x CPU fan header;3 x system fan headers;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;2 x Thunderbolt™ add-in card connectors;1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x Q-Flash Plus button;1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;2 x antenna connectors (2T2R);1 x USB Type-C® port, with USB 3.2 Gen 2x2 support;1 x USB 3.2 Gen 2 Type-A port (red);3 x USB 3.2 Gen 1 ports;4 x USB 2.0/1.1 ports;1 x HDMI port (Note);1 x DisplayPort (Note);1 x RJ-45 port;1 x optical S/PDIF Out connector;2 x audio jacks
- AudioRealtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
- LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- BIOS1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
- OSSupport for Windows 11 64-bit;Support for Windows 10 64-bit
- Warranty36 Months
