Спецификации
- ManufacturerGigabyte
- GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version.
- CPU's supportedLGA1851 socket: Support for Intel® Core™ Ultra Processors; (Go to GIGABYTE's website for the latest CPU support list.); L3 cache varies with CPU
- ChipsetIntel® B860 Express Chipset
- Expansion SlotsCPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 4 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1~PCIEX1_4)
- Memory typeSupport for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

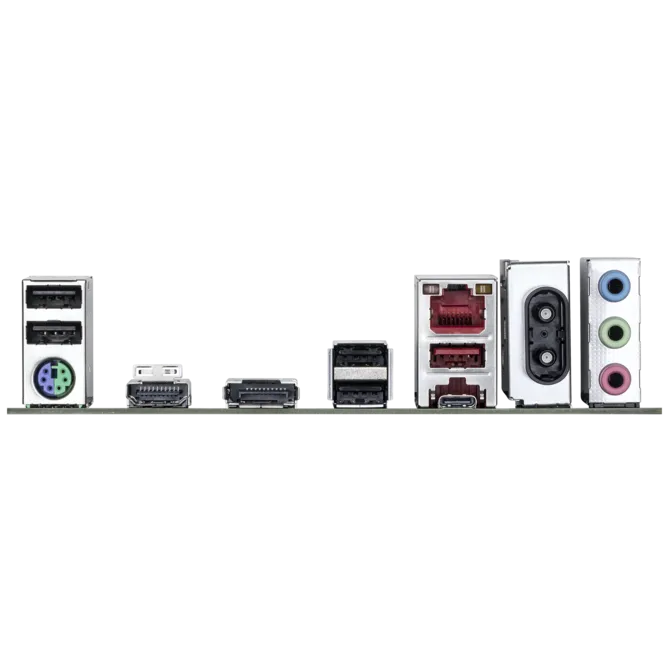

- ConnectorsInternal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 2 x system fan headers; 2 x system fan/water cooling pump headers; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors; 1 x PS/2 keyboard/mouse port; 1 x HDMI port*; 1 x DisplayPort*; 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 2 Type-A port (red); 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 2 x antenna connectors (2T2R); 3 x audio jacks
- AudioRealtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
- LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- BIOS1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form FactorATX Form Factor; 30.5cm x 24.4cm
- OSSupport for Windows 11 64-bit; Support for Windows 10 64-bit; * The Intel® NPU driver is only supported on Windows 11.
