Спецификации
- GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:;- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and HDR.;Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support native HDMI 2.1 TMDS compatible ports.;- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;* Support for HDMI 1.4 version;(Graphics specifications may vary depending on CPU support.);Support for up to quad-display at the same time
- ChipsetAMD X870E
- Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.;When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.);Chipset:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1);- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
- Memory typeSupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

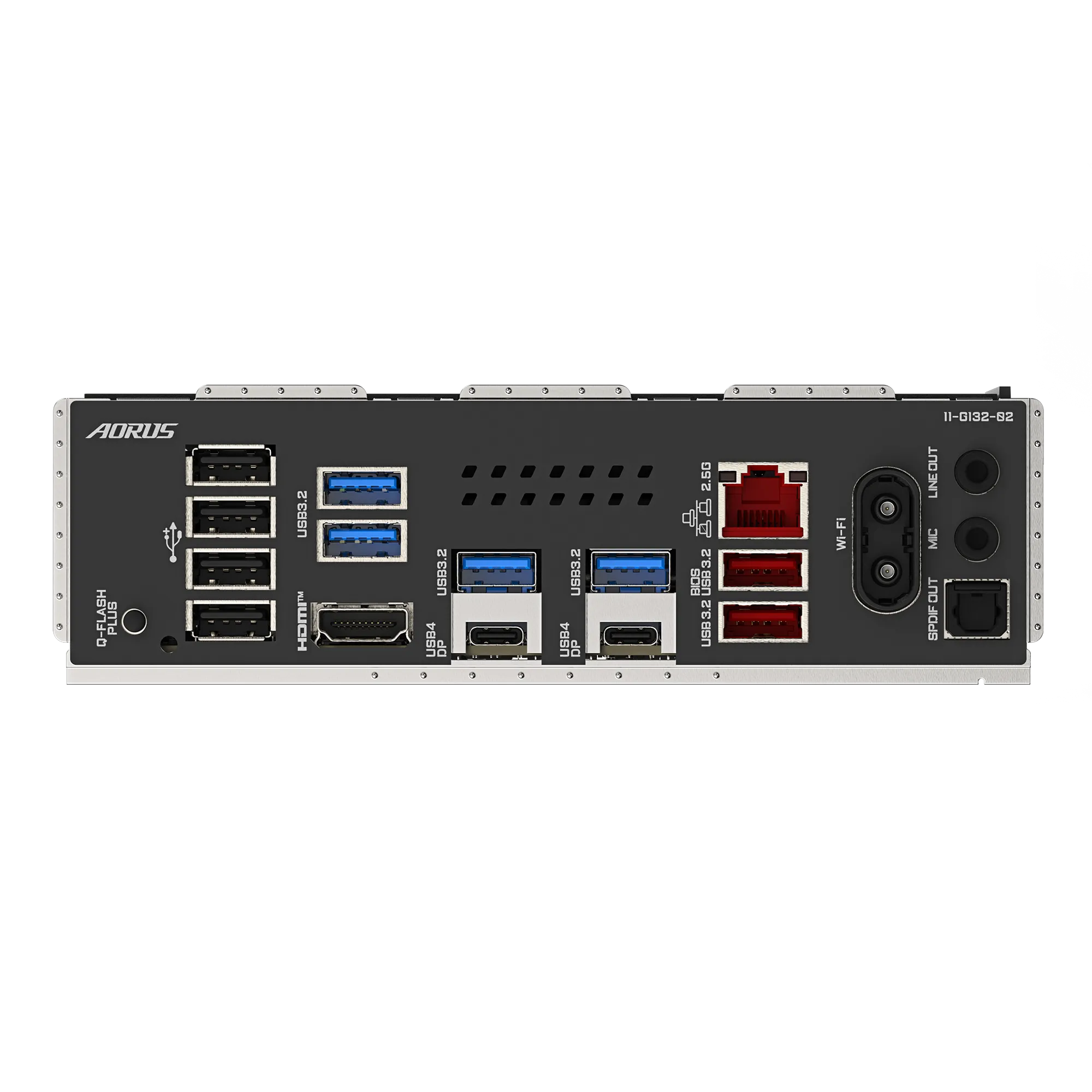

- Connectors1 x 24-pin ATX main power connector;2 x 8-pin ATX 12V power connectors;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;4 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;2 x USB 3.2 Gen 1 headers;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x HDMI port (Note);1 x power button;1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors:;1 x Q-Flash Plus button;4 x USB 2.0/1.1 ports;4 x USB 3.2 Gen 1 ports;1 x HDMI port (Note);2 x USB4® USB Type-C® ports (DisplayPort (Note));1 x RJ-45 port;2 x USB 3.2 Gen 2 Type-A ports (red);2 x antenna connectors (2T2R);2 x audio jacks;1 x optical S/PDIF Out connector
- AudioRealtek® ALC1220 CODEC;* The back panel line out jack supports DSD audio.;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
- LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- BIOS1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form FactorATX Form Factor; 30.5cm x 24.4cm
- OSSupport for Windows 11 64-bit;Software: Norton® Internet Security (OEM version);LAN bandwidth management software
