Спецификации

Manufacturer
MSI
Model

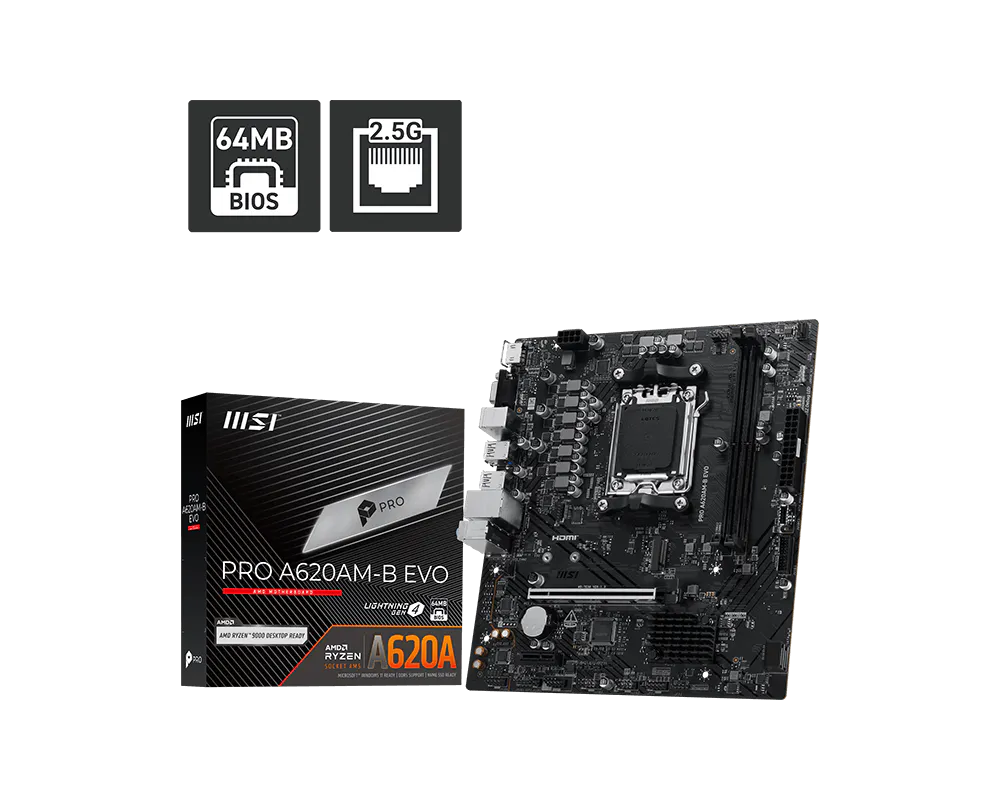

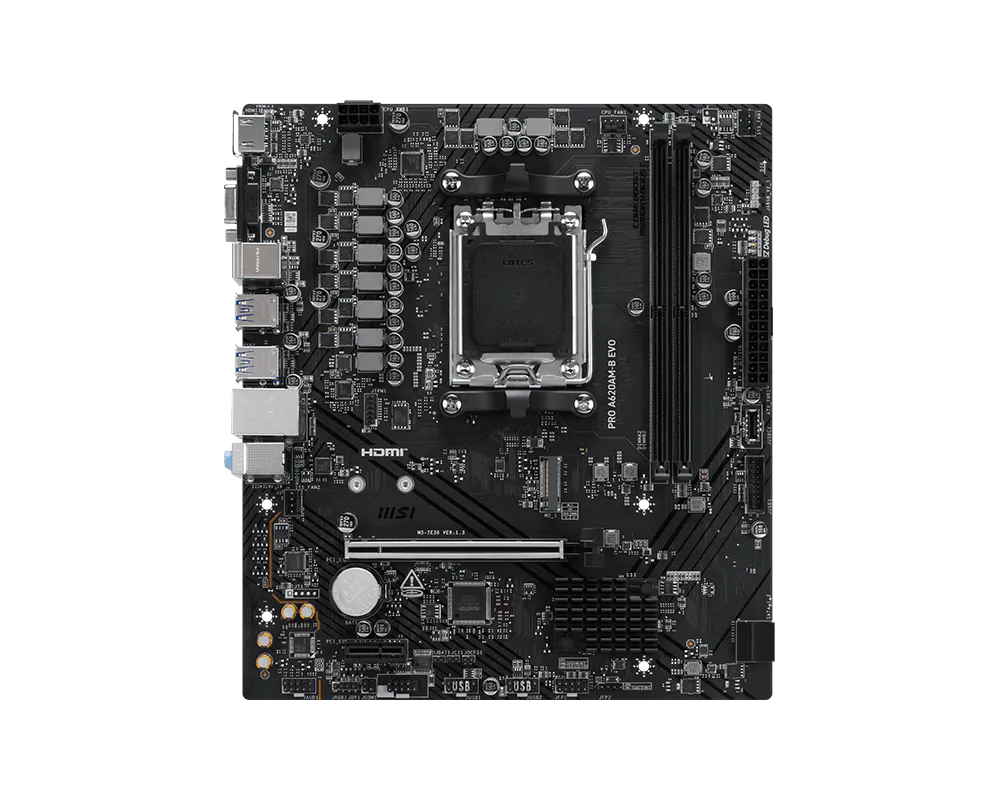

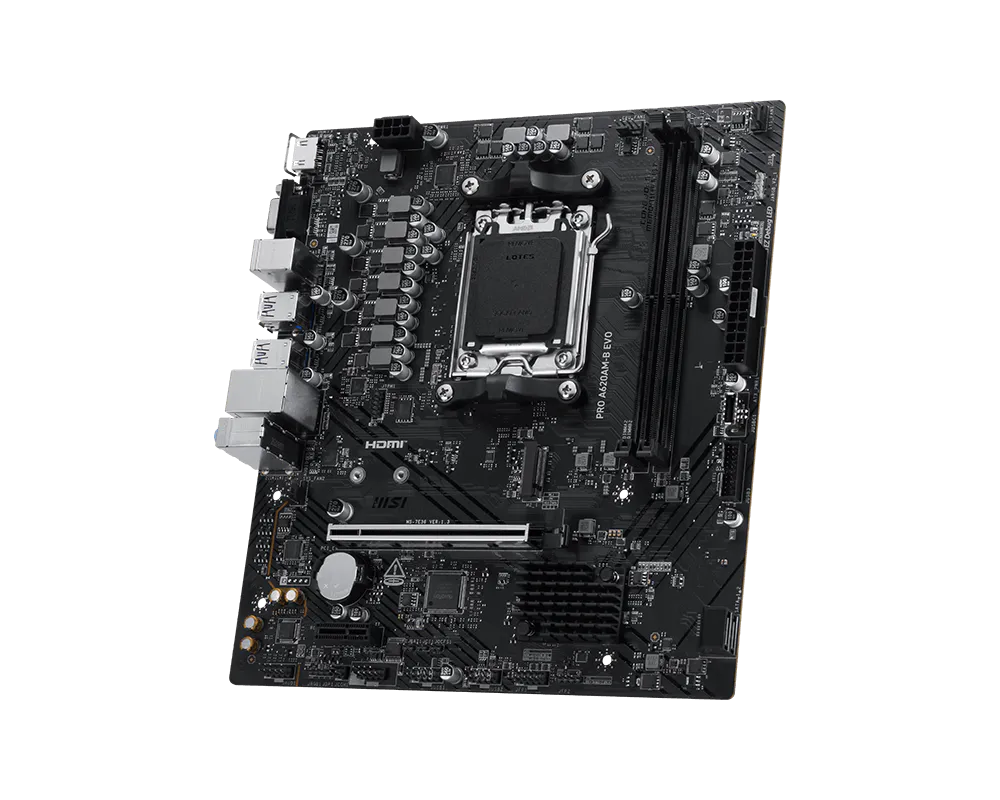

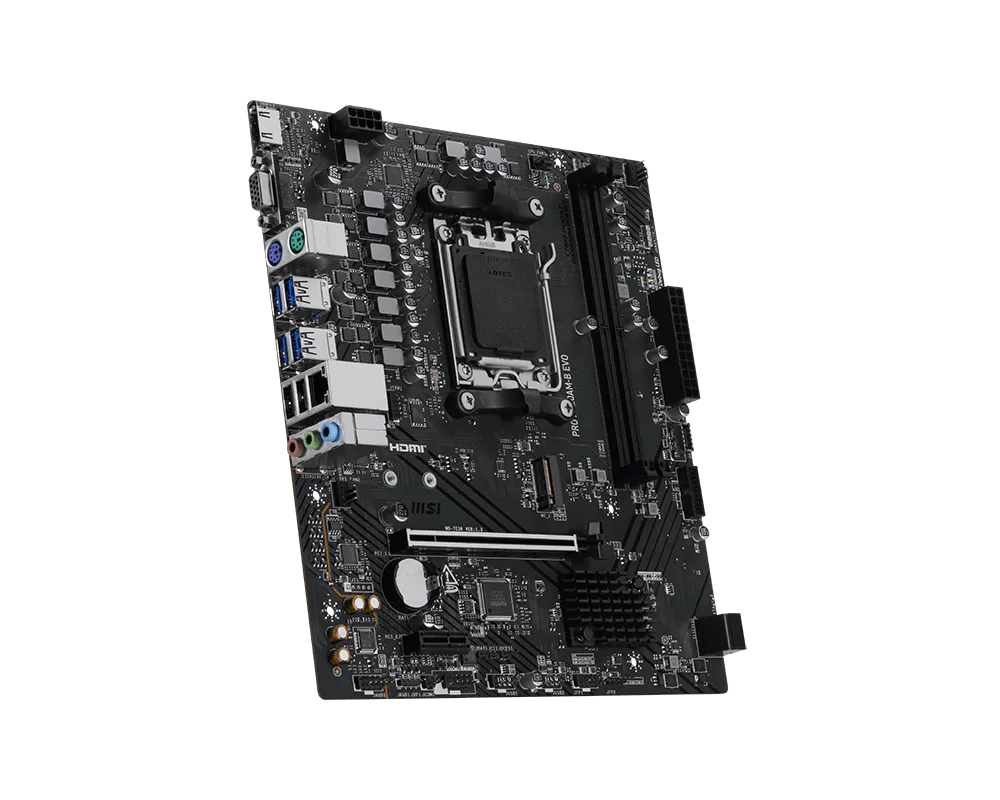

PRO A620AM-B EVO
Socket
Socket AM5
Graphics
1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
CPU's supported
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Chipset
AMD A620A
Expansion Slots
1x PCI-E x16 slot; • Supports x16 (For Ryzen™ 9000 and 7000 Series processors); • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports x4 (For Ryzen™ 8500/ 8300 Series processors); 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory type
2x DDR5, Maximum Memory Capacity 128GB; Memory Support DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6800+ MT/s; • 1DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only

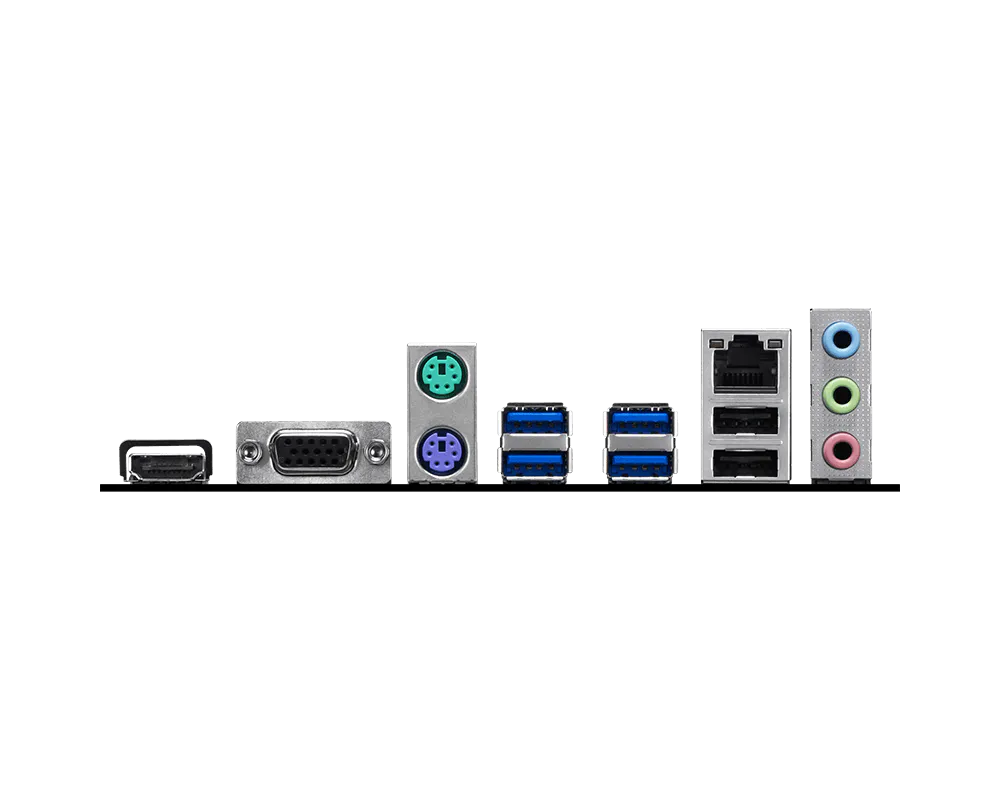

Connectors
1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports
Audio
Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
LAN
Realtek® RTL8125 2.5G LAN
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
