Спецификации

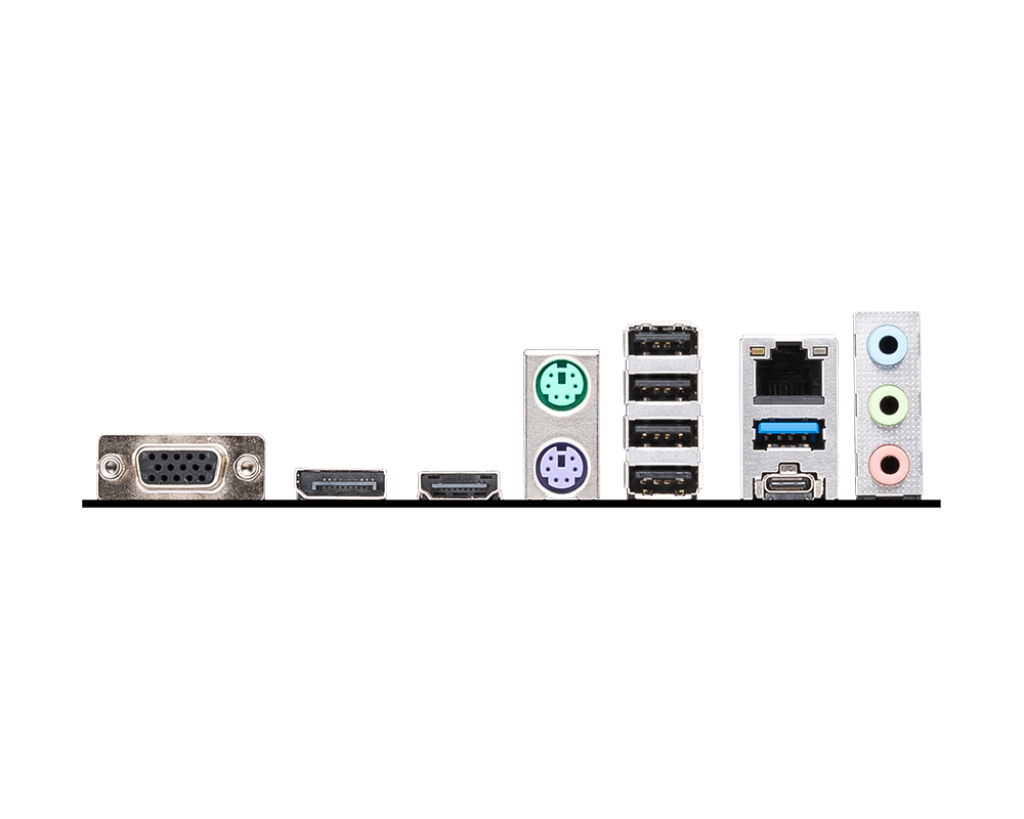

- Graphics1x HDMI™; 1x DisplayPort; 1x VGA; Support HDMI™ 1.4, maximum resolution of 4K 30Hz*; Support DP 1.4, maximum resolution of 4K 60Hz*; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
- ChipsetINTEL B760
- Expansion Slots1x PCI-E x16 slot; 2x PCI-E x1 slot; PCI_E1 PCIe 4.0 supports up to x16 (From CPU); PCI_E2 PCIe 4.0 supports up to x1 (From Chipset); PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
- Memory type4x DDR4, Maximum Memory Capacity 128GB; Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz; • 1DPC 2R Max speed up to 4600+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)
- Connectors1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Printer Port (JLPT); 1x Com Port (JCOM); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0; 2x USB 3.2 Gen1 Type A
- AudioRealtek® ALC897 Codec; 7.1-Channel High Definition Audio
- LANRealtek® RTL8111H Gigabit LAN
- Form FactormATX,243.84mmx243.84mm
- OSSupport for Windows® 11 64-bit, Windows® 10 64-bit
- Warranty36 Months
