Спецификации

Manufacturer
MSI
Model

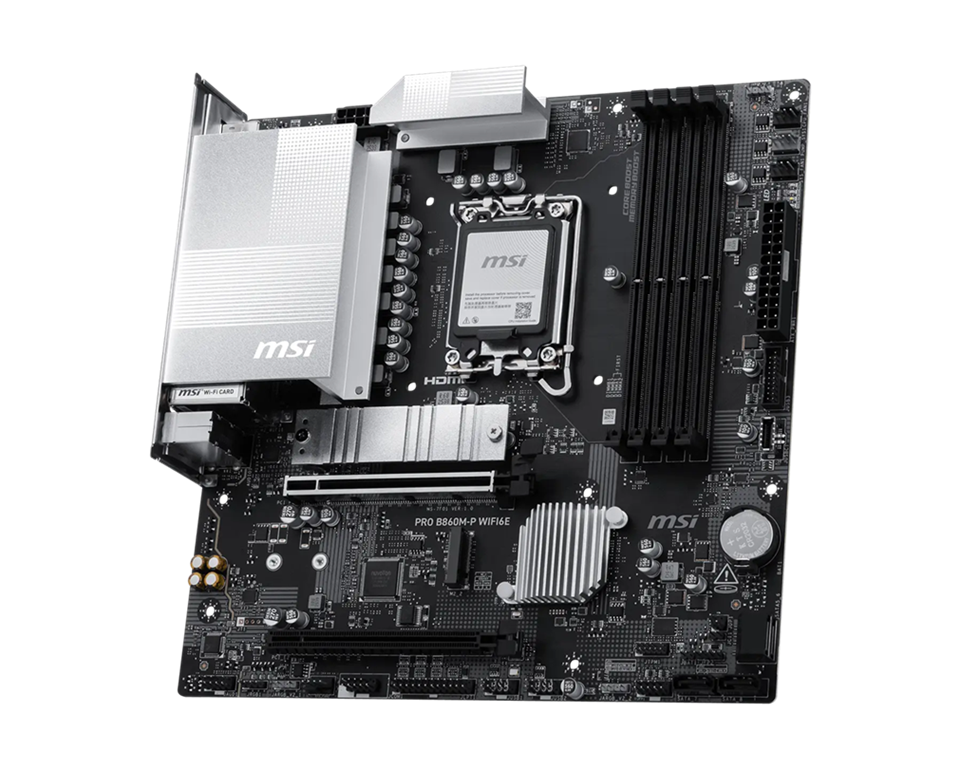

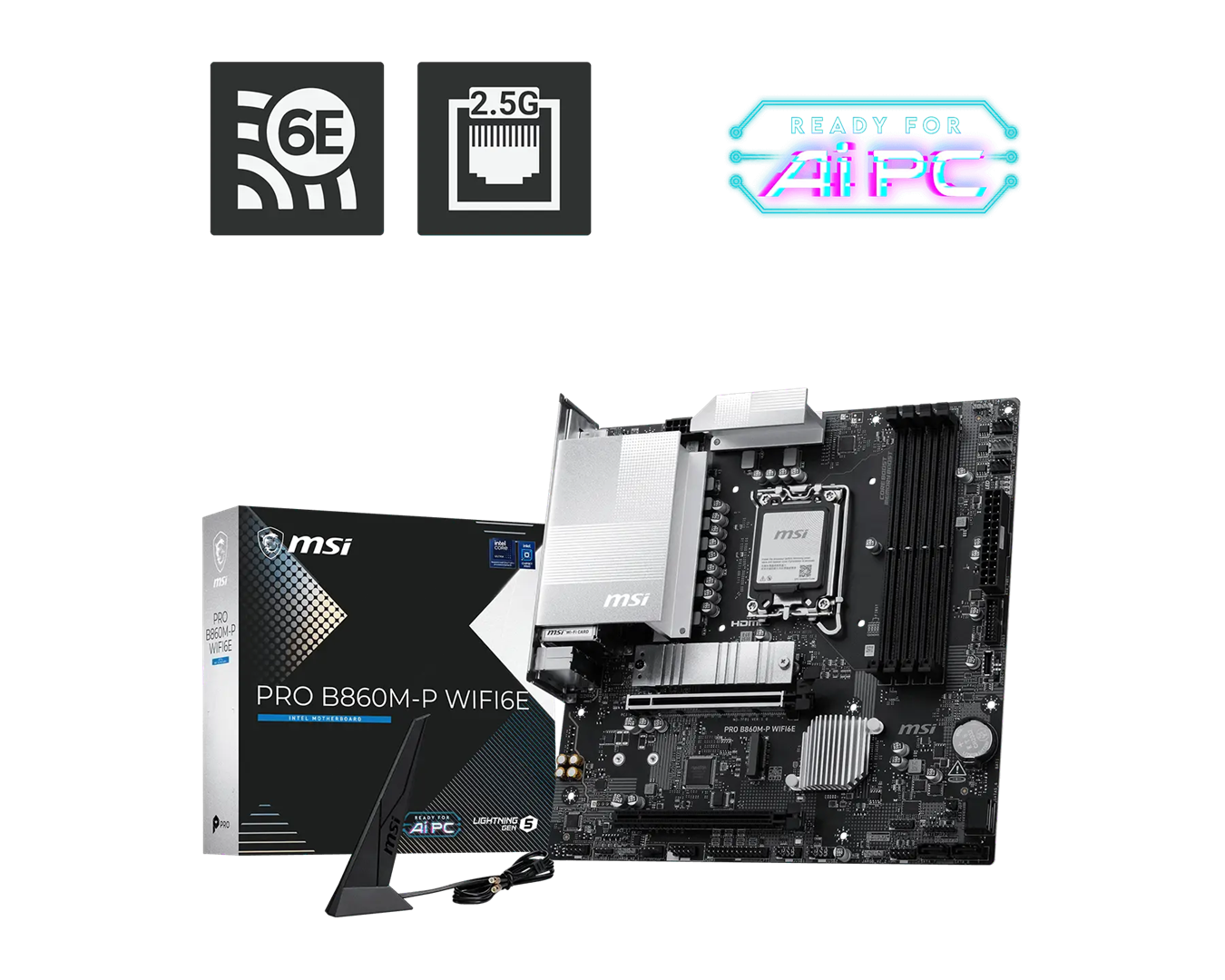

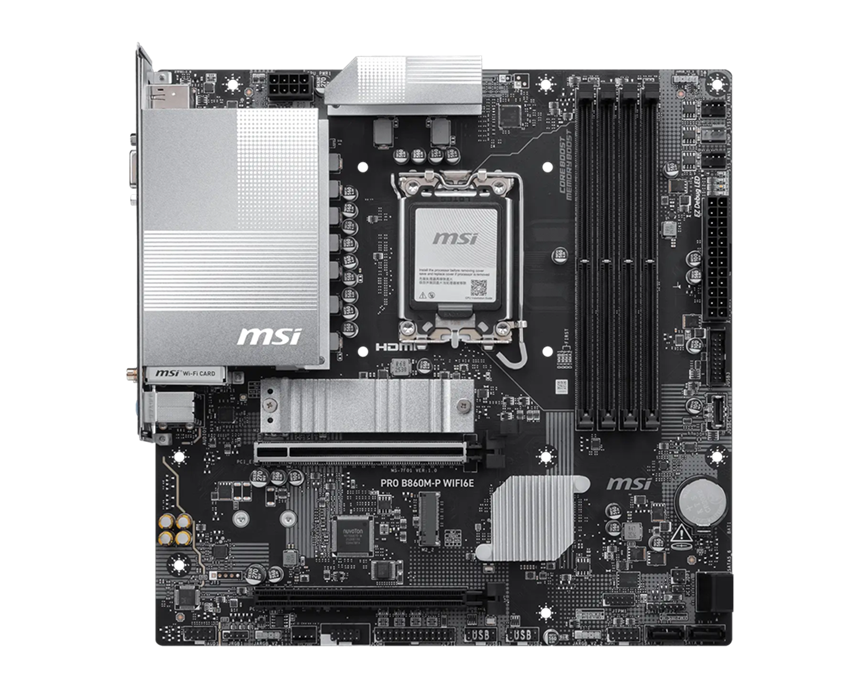

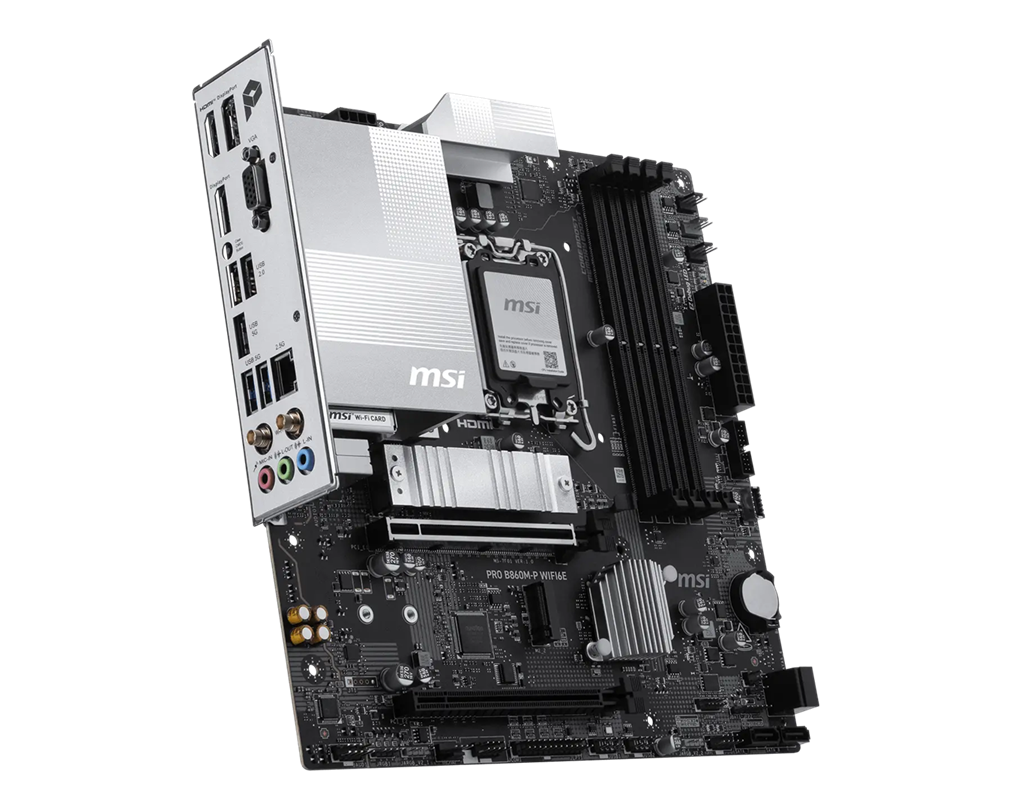

PRO B860M-P WIFI6E
Socket
LGA 1851
Graphics

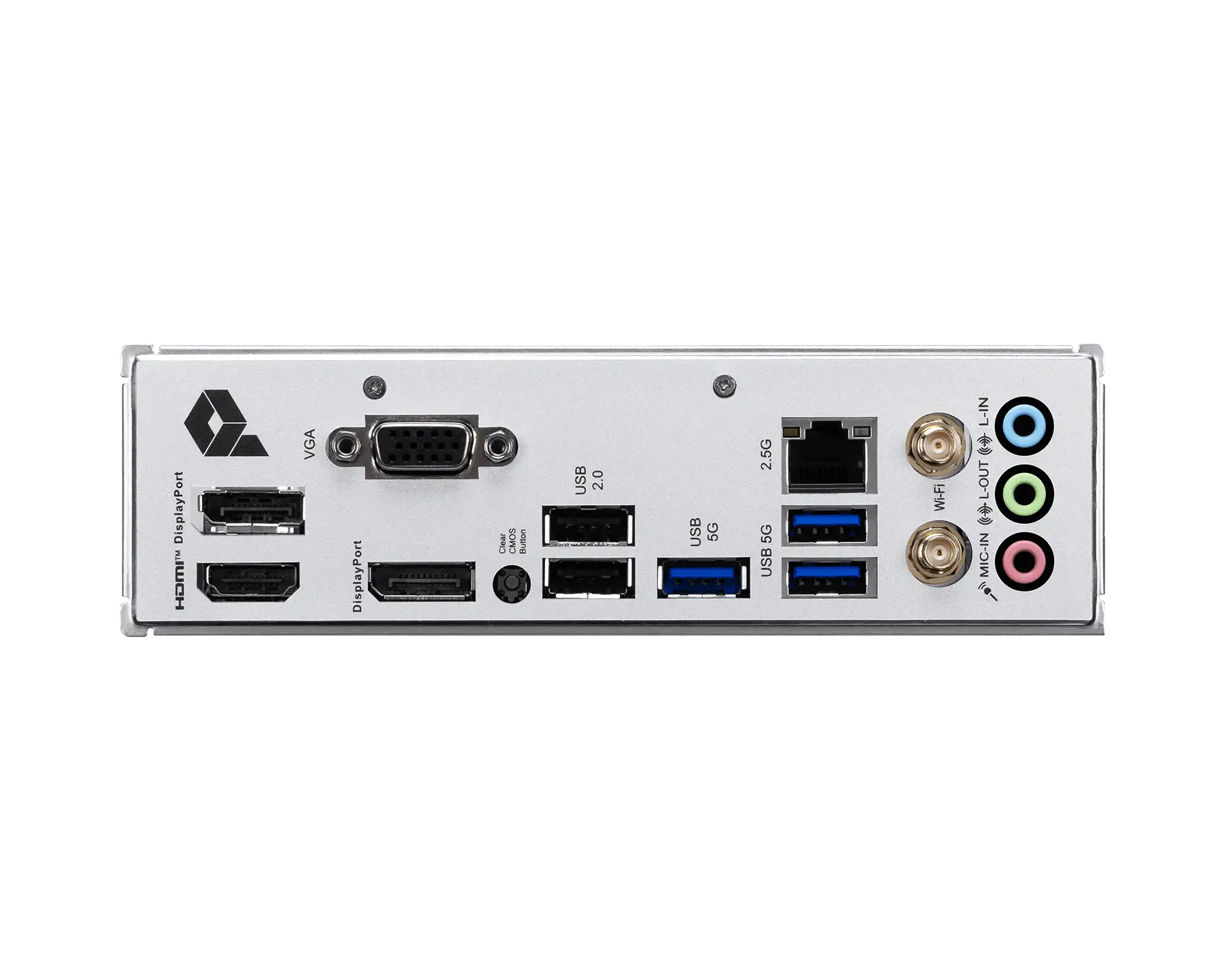

1x HDMI™; Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz*; 2x DisplayPort; Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz*; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
CPU's supported
Supports Intel® Core™ Ultra Processors (Series 2)
Chipset
INTEL B860
Expansion Slots
2x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking:; • 1DPC 1R Max speed up to 8800+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; Supports Intel® POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM
Connectors
1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Printer Port (JLPT); 1x Com Port (JCOM); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports
Audio
Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
LAN
Realtek® 8125 2.5Gbps LAN
Form Factor
mATX, 243.84mmx243.84mm
OS
Support for Windows® 11 64-bit
