Спецификации

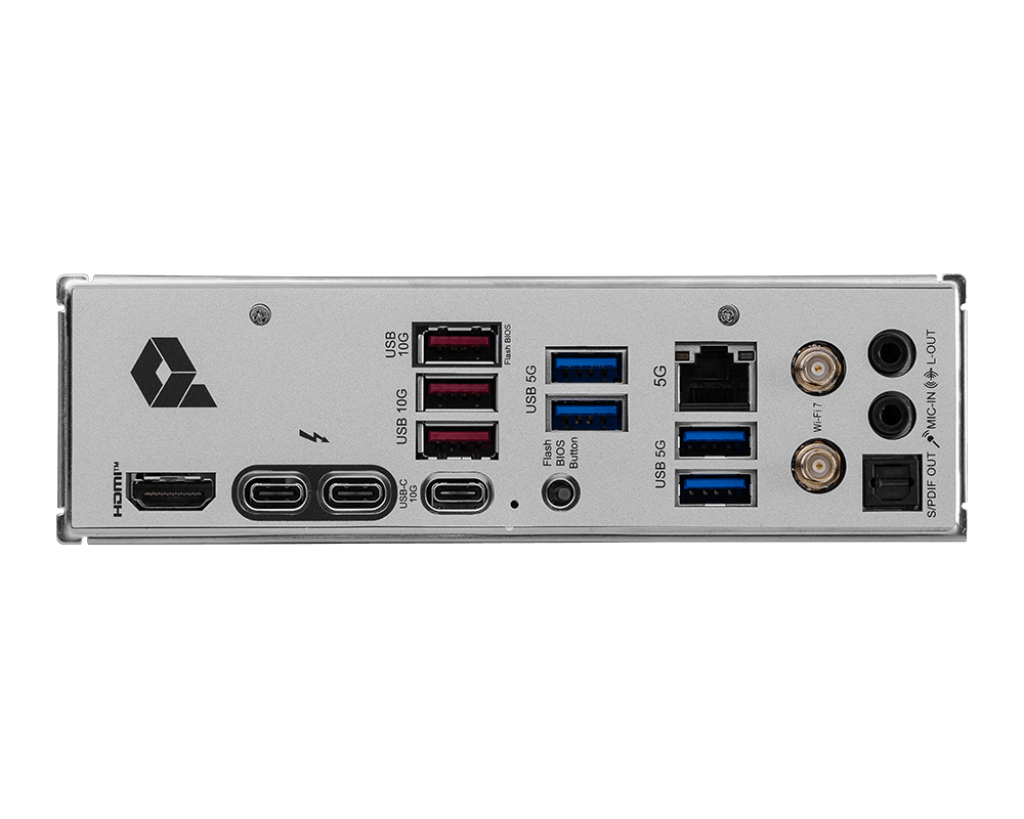

- Graphics1x HDMI™;Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz;2x Type-C DisplayPort;Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
- ChipsetINTEL Z890
- Expansion Slots3x PCI-E x16 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- Memory type4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;Max. overclocking frequency:;• 1DPC 1R Max speed up to 9200+ MT/s;• 1DPC 2R Max speed up to 7200+ MT/s;• 2DPC 1R Max speed up to 4800+ MT/s;• 2DPC 2R Max speed up to 4800+ MT/s;Supports Intel® POR Speed and JEDEC Speed;Supports Memory Overclocking and Intel® XMP 3.0;Supports Dual-Controller Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM
- Connectors1x Thunderbolt5 card connector(JTBT5, support RTD3);1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);6x System Fan;1x EZ Conn-header (JAF_2);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);3x Addressable V2 RGB LED connector (JARGB_V2);1x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;2x USB 5Gbps Type A ports;1x USB 20Gbps Type C ports
- AudioRealtek® ALC1220P;7.1-Channel High Definition Audio;Supports S/PDIF output
- LANRealtek® 8126 5Gbps LAN
- Form FactorATX 243.84mmx304.8mm
- OSSupport for Windows® 11 64-bit
- Warranty36 Months
