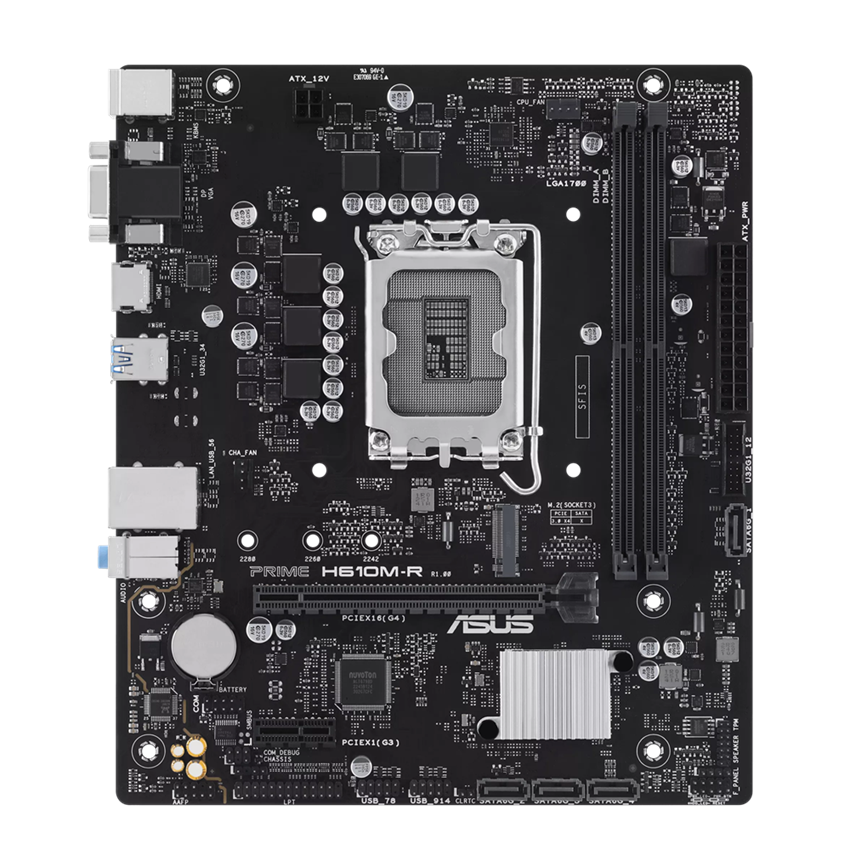

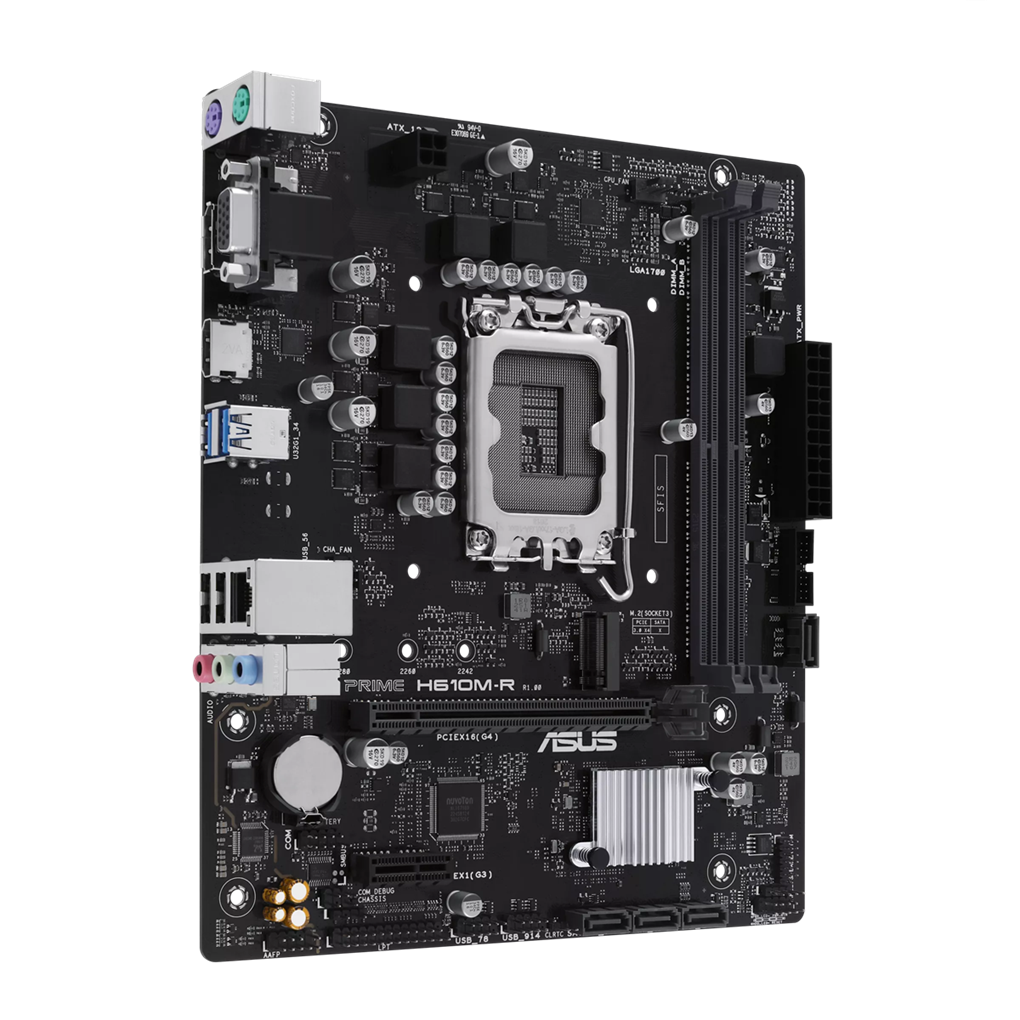

Спецификации

Manufacturer
ASUS
Graphics
1 x DisplayPort;1 x VGA port;1 x HDMITM port
CPU's supported
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports up to Intel® 65W CPU;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel® H610 Chipset
Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot;Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot
Memory type
2 x DIMM, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP)

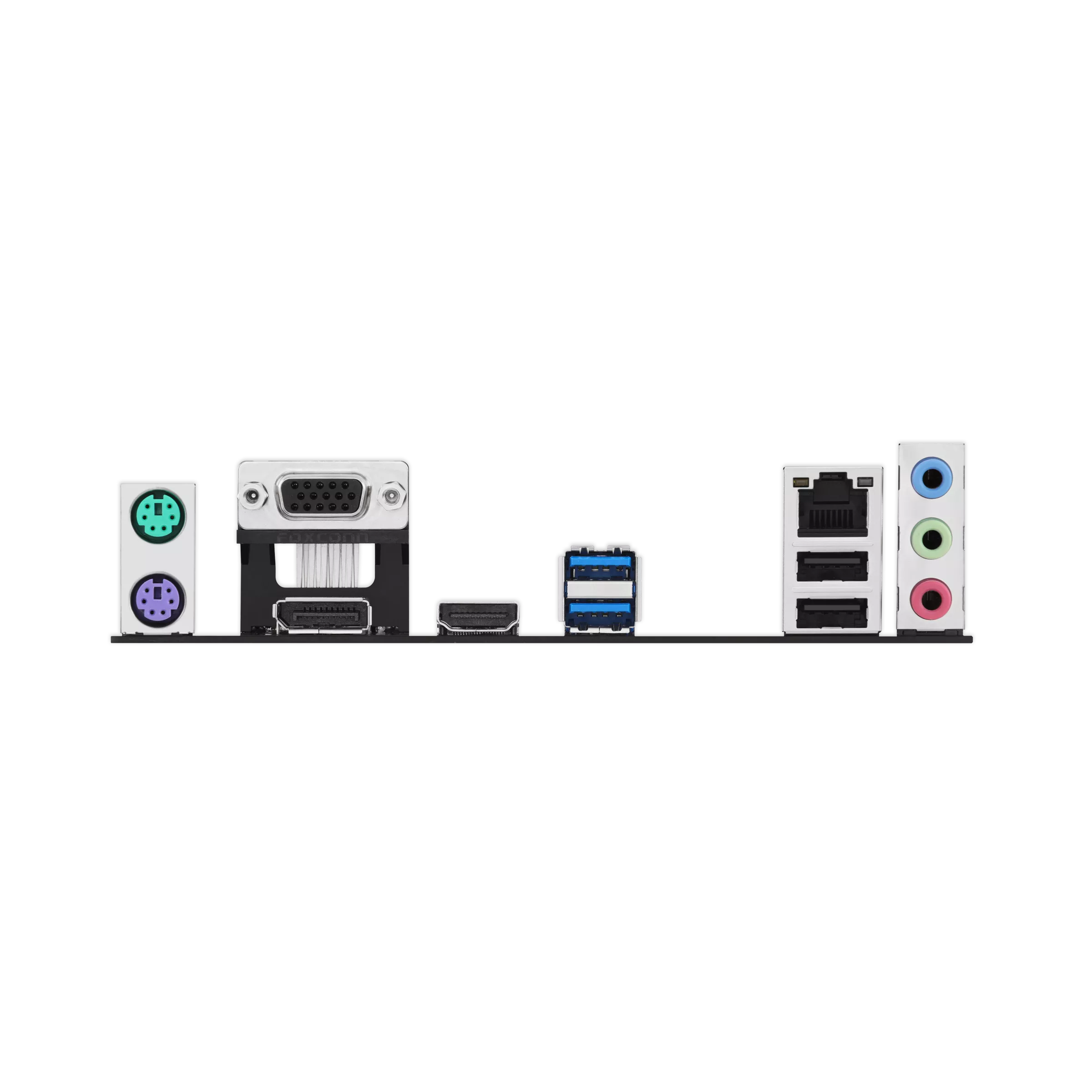

Connectors
Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin Chassis Fan header;Power related;1 x 24-pin Main Power connector;1 x 4-pin +12V Power connector;Storage related;1 x M.2 slot (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 4 USB 2.0 ports;Miscellaneous;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x LPT header;1 x Speaker header;1 x SPI TPM header (14-1 pin);1 x 10-1 pin System Panel header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
LAN
1 x Realtek 1Gb Ethernet
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor, 22.6 cm x 19.5 cm
OS
Windows® 11 64-bit, Windows® 10 64-bit
Warranty
36 Months
