Спецификации
- ManufacturerGIGABYTE
- GraphicsIntegrated Graphics Processor-Intel® HD Graphics support;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hzjk;* Support for HDMI 2.1 version and HDCP 2.3.;** Support native HDMI 2.1 TMDS compatible ports.;- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hzj;* Support for DisplayPort 1.2 version and HDCP 2.3
- CPU's supportedLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU
- ChipsetIntel® H610 Express Chipset
- Expansion SlotsCPU;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;Chipset;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- Memory type14th and 13th Generation Intel® Core™ i9/i7 Pocessors;- Support for DDR5 5600/ 5200/ 4800/ 4400 MT/s memory modules;13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;- Support for DDR5 4800/4400 MT/s memory modules;2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

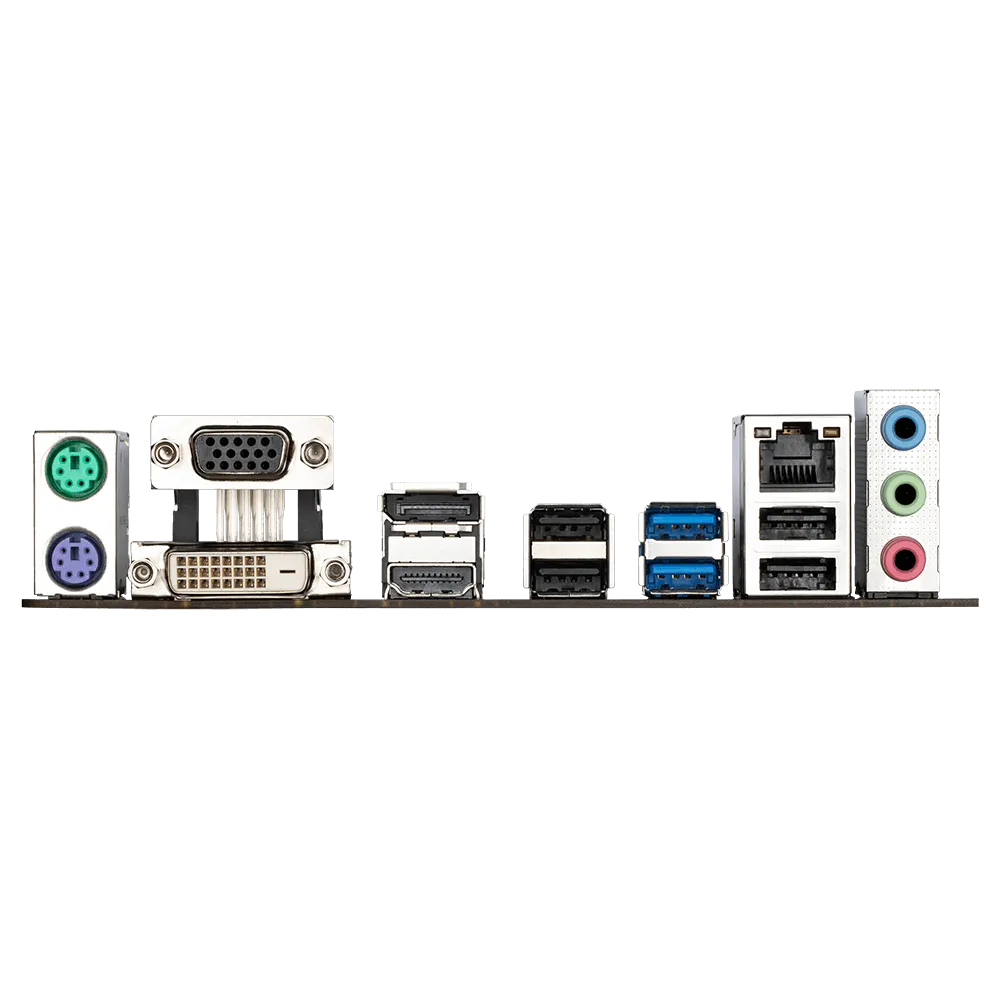

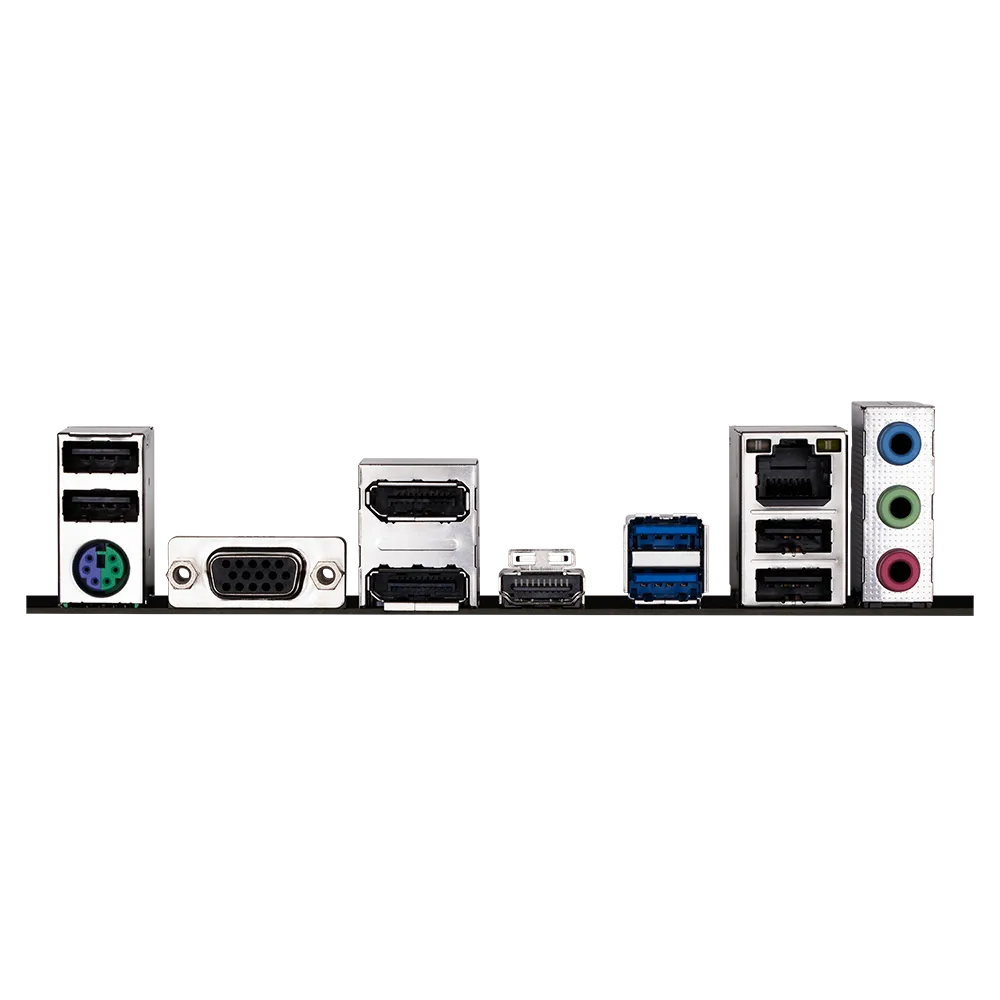

- ConnectorsiTE® I/O Controller Chip;1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors;1 x RGB LED strip header;1 x front panel header;1 x front panel audio header;1 x speaker header;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x Clear CMOS jumper;1 x chassis intrusion header;Back Panel Connectors;1 x PS/2 keyboard/mouse port;1 x D-Sub port;2 x DisplayPort;1 x HDMI port;2 x USB 3.2 Gen 1 ports;4 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks
- AudioRealtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
- LANRealtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
- BIOS1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form FactorMicro ATX Form Factor; 22.3cm x 19.6cm
- OSSupport for Windows 11 64-bit;Support for Windows 10 64-bit
- Warranty36 Months
