Спецификации

Manufacturer
MSI
Graphics

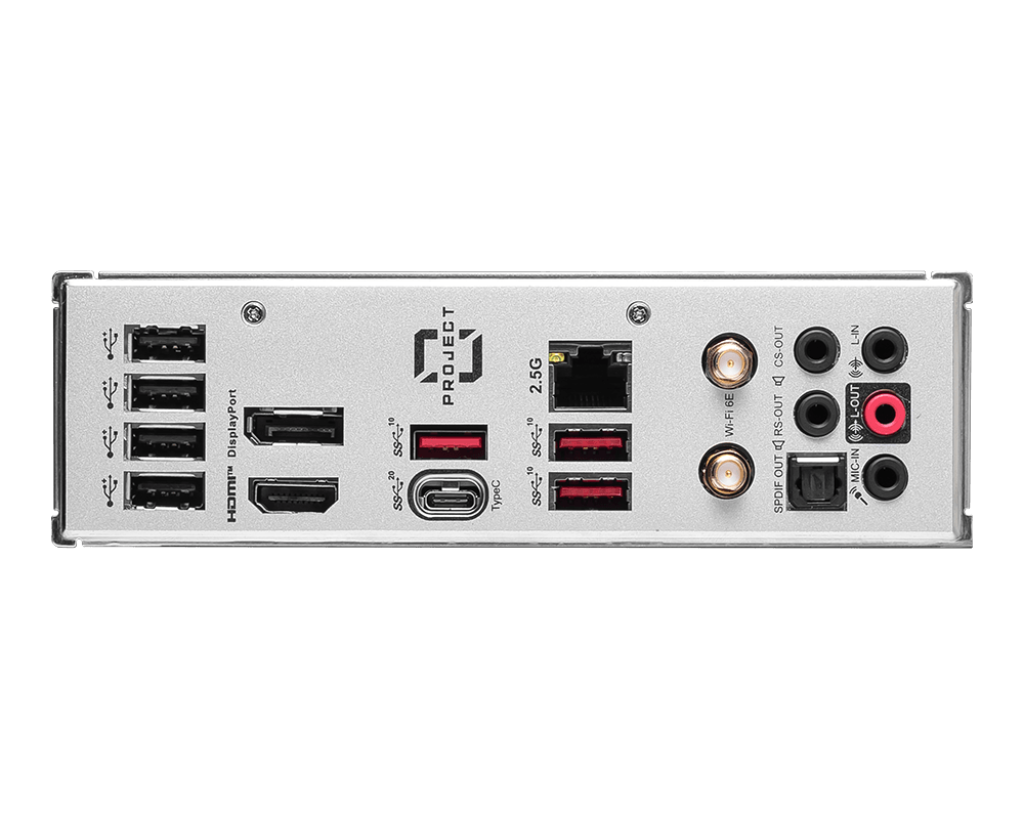

1x HDMI™; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz
CPU's supported
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700
Chipset
INTEL B760
Expansion Slots
2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory type
4x DDR5, Maximum Memory Capacity 256GB; Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; 1DPC 1R Max speed up to 7800+ MHz; 1DPC 2R Max speed up to 6600+ MHz; 2DPC 1R Max speed up to 6400+ MHz; 2DPC 2R Max speed up to 5600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile
Connectors
1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
Audio
Realtek® ALC897 Codec; 7.1-Channel High Performance Audio; Supports S/PDIF output
LAN
Realtek® 2.5Gbps LAN
Form Factor
mATX 243.84mmx243.84mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty
36 Months
