Спецификации

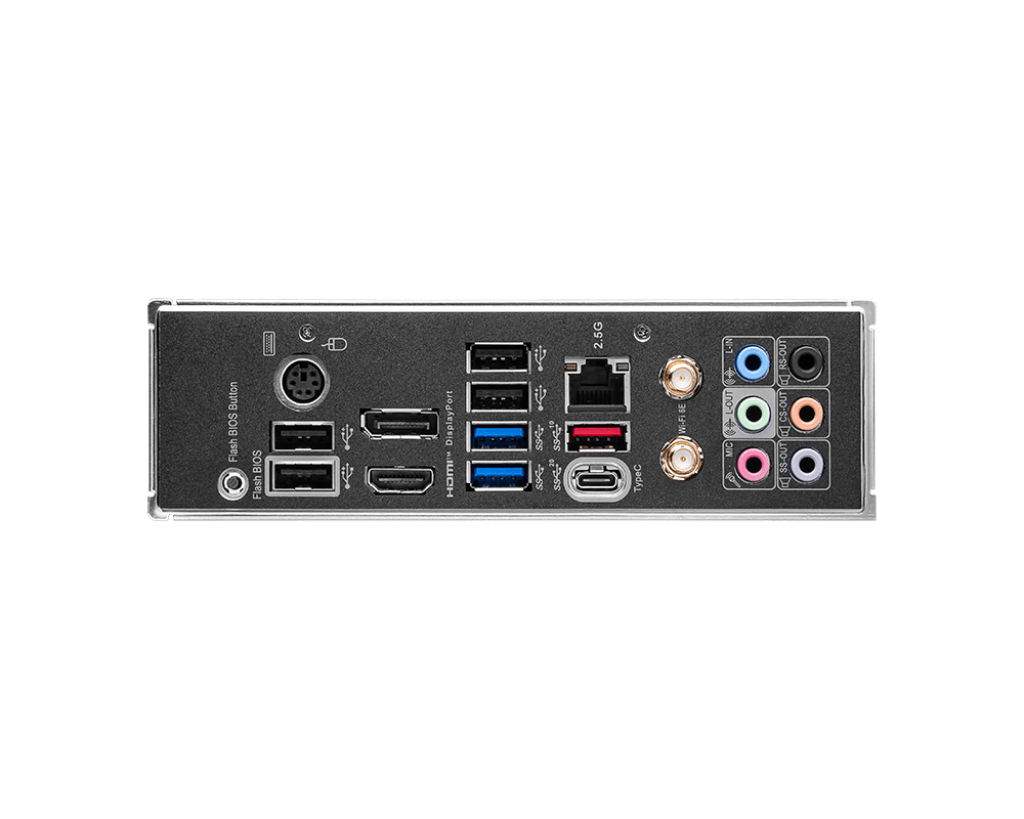

- Graphics1x HDMI™; Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*
- ChipsetINTEL Z790
- Expansion Slots3x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
- Memory type4x DDR5, Maximum Memory Capacity 192GB; Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200;(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel® XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
- Connectors1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports; 1x USB4 card connector (JTBT_U4_1, supports RTD3)
- AudioRealtek® ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
- LANIntel® 2.5Gbps LAN
- Form FactorATX,243.84mmx304.8mm
- OSSupport for Windows® 11 64-bit, Windows® 10 64-bit
- Warranty36 Months
