Спецификации

Graphics

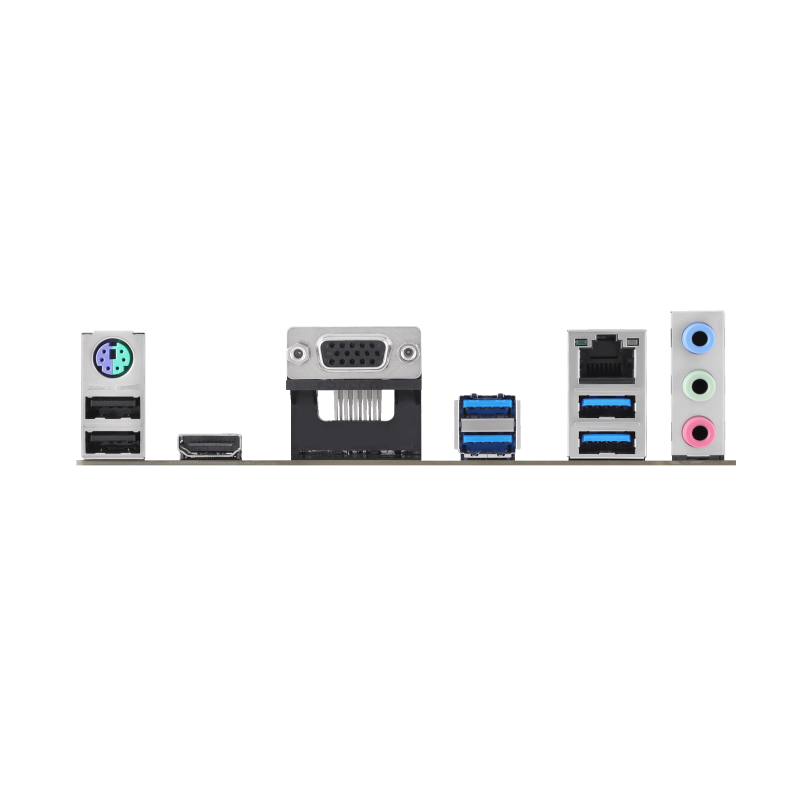

1 x VGA port; 1 x HDMI® port**
Chipset
Intel® B760 Chipset
Expansion Slots
Intel® 13th & 12th Gen Processors; 1 x PCIe 4.0 x16 slot; Intel® B760 Chipset; 2 x PCIe 4.0 x1 slots
Memory type
2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)
Connectors
1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 3 additional USB 2.0 ports; 2 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
LAN
1 x Realtek 2.5Gb Ethernet
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
OS
Windows® 11, Windows® 10 64-bit
Warranty
36 Months
